- type:paper punching machine
- suitable for:wire o,plastic coil,comb binding
- suitable for binding:notebook,calendar,planner
- paper:60-400gsm
- hole style:round,oval,square
- max paper size:400x380mm
- standard tool:4x4mm,3:1
- certificate:CE
- capacity:7200/hr
- Power:3KW
- CNC or Not:CNC
- Condition:New
- Machine Type:Punching Machine
- Power Source:Pneumatic
- Key Selling Points:automatic
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Marketing Type:Ordinary Product
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;GUA
- Nominal Force (kN):/
- Brand Name:HongYuan
- Voltage:380V
- Dimension(L*W*H):2200x1000x1300mm
- Certification:CE ISO
- Weight (T):0.7
- Warranty:1 Year
Model APM-400 Automatic Punching Machine for binding book,automatic punching machine
Advantages of automatic punching machine:
1. Punching speed up to 90 rpm
2. Max.punching width up to 400mm(with the conveyor option)
3. Practical utility. lower price.
4. Handle different paper thickness from 60gsm to 400gsm.
Specification:
MODEL | APM-400 |
Max paper size with high pile reception unit (w*l) | 400*380mm |
Min.paper size with high pile reception unit (w*l) | 135*125mm |
Max.punching width with high pile perception unit | 400mm |
Max.paper thickness | 2mm |
Paper specifications | 60-400g/m2 |
Max.pile height mm | 370 |
Max.cycle speed | 8400cycles/hr |
Normal working speed | 7200cycles/hr |
Min.working speed | 1800cycles/hr |
Stroke | 13mm |
Power supply | 380v/3ph/50hz |
Power consumption | 3KW |
dimensions with high pile reception unit( w*d*h) | 2200*1000*1300mm |
Net weight | 700kg |
Air compressor (not included) | 0.37KW |
air pressure | 4-6bar |
automatic punching machine picture:
We produce binding supplies,such as double wire(wire-o),plastic coil,plastic binding comb,calendar hanger,metal spiral coil,paper hole automatic punching machine,double loop wire binding machine,wire o forming machine,double wire cutting machine,metal spiral forming machine,plastic coil forming machine,automatic punching machine,etc.
part of our workshop
part of our fair
Our company has passed ISO9001 international quality system; All of our binding materials passed strict SGS testing and binding machines like paper perforating machine,automatic punching machine with CE certificate. They meet the standards of Euro-American markets.

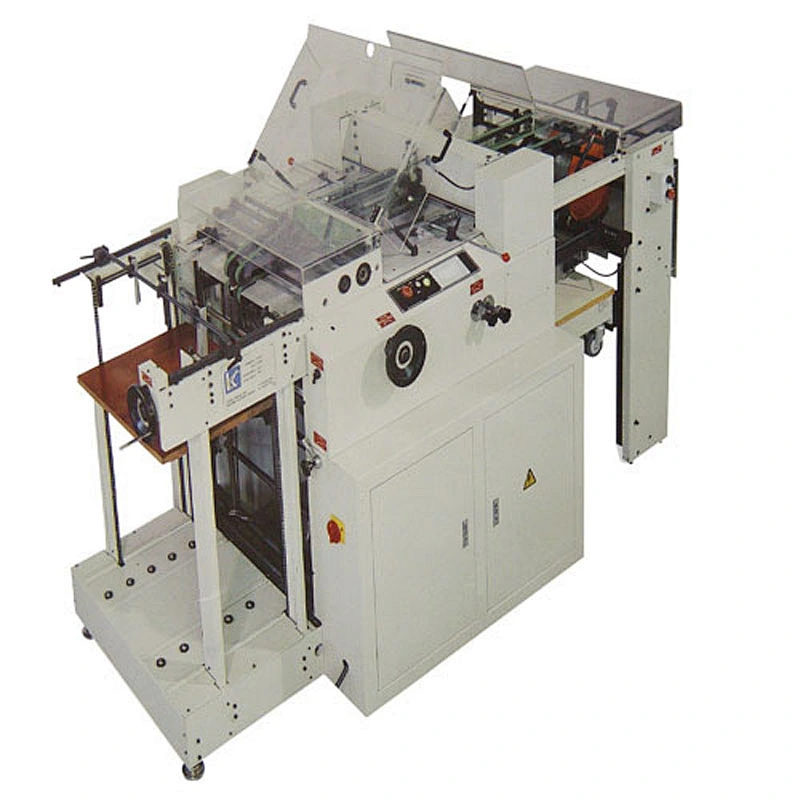

photo of automatic punching machine
