- keyword:paper corner cutting machine
- working speed:1800-2500 pcs/hr
- stroke:90mm
- cutting angle:3/16"-1"
- motor speed:1400 c/m
- power supply:220v/1ph/50hz
- power consumption:0.37kw
- cutting corner:single
- factory:ISO9001
- model no.:CRM-50
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Paper Cutting Machine
- Computerized:No
- Warranty:1 year
- Production Capacity:50 m/min
- Key Selling Points:Easy to Operate
- Max. workable width:1200mm
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Motor
- PLC Brand:MITSUBISHI
- Place of Origin:CN;GUA
- Brand Name:HY
- Voltage:220V/50Hz
- Dimension(L*W*H):420*360*1300MM
- Weight:130
- Certification:CE

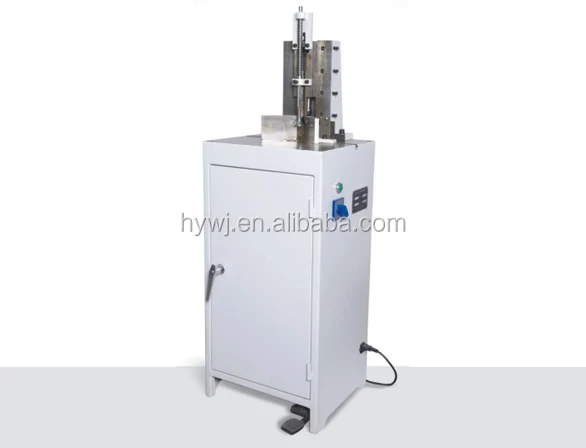

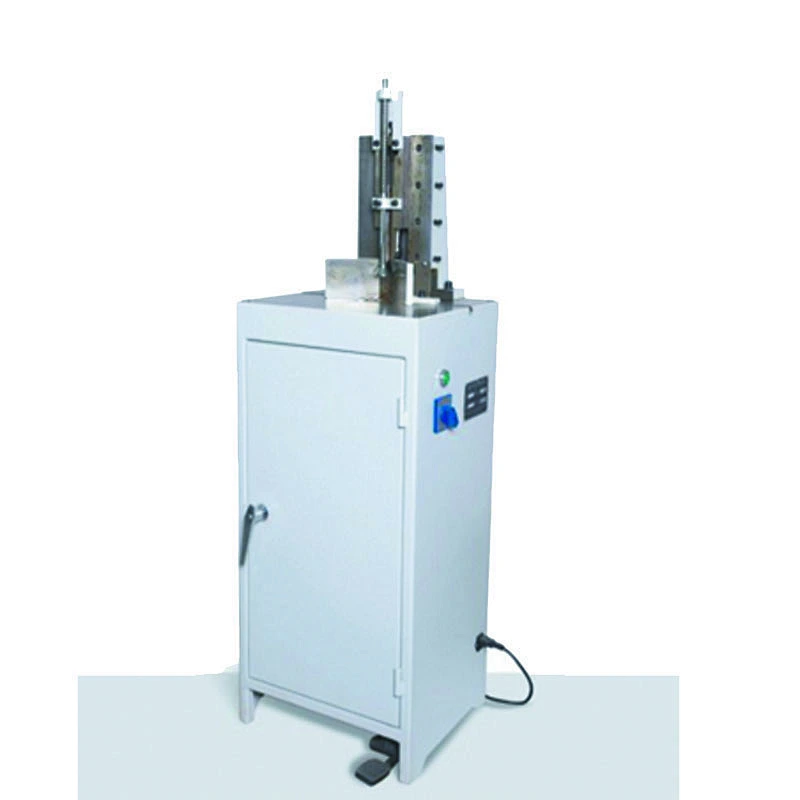

Book round corner cutting machine, corner rounding machine,CRM-50 single one corner cutting machine round shape paper straight corner for book
Features:
11-Blade corner rounding machine
Built-in 11 kinds of blade as belowing picture. Change one blade very fast in two
seconds.
Works with many kinds of materials such as paper, cardboard, PVC etc, ideal
choice for making the album, menu, photo book, notebook, tender, brand label etc.
Foot pedal control,convenient and high efficient to operate.
Custom Eco-friendly CRM-50 Corner Rounding Machine
1. Summarization:
CRM-50 is the paper cutting angle equipment that uses electricity as power, machinery clutch controlled . It can cut all sizes of angle.
2. Main technical data:
| the max.cutting tickness | 50mm |
| cutting speed | 30times/min |
| slide distance | 90mm |
| cutting tool speciation | R1-R12mm |
| motor power | 0.37kw,220v,50Hz |
| rotational speed of motor | 1400r/min |
| weight | 130kg |
| measurement | 420x360x1300mm |
3. Operation:
3.1 The machine should be installed flat and firm.
3.2 Clean the worktable's oil, drop 20#-30# oil on every oil point.
3.3 Open the front door, step the footstool, turn the big wheel counter clockwise by hand. Look for the space between upper knife and down knife whether suitable or not, and then rurn the big wheel several circle, and observe other parts whether normal
PART ONE
PART TWO
PART THREE
PART FOUR
PART FIVE
PART SIX
PART SEVEN
Our factory obtained ISO9001 QUALITY SYSTEM CERTIFICATION . All of our binding materials have passed SGS environmental testing and binding machine,including plastic coil binding machine have passed CE certificatoin .
our other products: binding machine,punching machine,forming machine,etc
binding supplies: plastic coil,wire-o,double loop wire,nylon coated wire,plastic filament wire
Q: Are you a trading company or a factory?
A: We are a factory.
Q: What about the after-sales service about the machine?
A: We will send you instructions of the machine. If you still do not know how to use it, our workers can go to your place to help you. If some parts of the machine is broken, we can send you by express.
Q: What are your terms of payment?
A: 30% deposit, 70% balance before delivery. 30% deposit, the balance L/C. 100% in advance. Western Union.
Please contact us helen(at)szhywj.net
