- Wire Gauge:0.7mm to 2.0mm
- keyword:nylon coated wire
- color:black/white/red/yellow/blue/green
- packing:400kgs/roll
- filament size:0.7mm-2.0mm
- application:wire-o,single spiral,calendar hanger...
- factory:ISO9001
- special color:gold,rose gold
- package:on pallet
- Surface Treatment:Coated
- Type:coated wire
- Function:Binding Wire
- Processing Service:Bending
- Place of Origin:CN;GUA
- Brand Name:HongYuan
- Model Number:0.6mm-2.0mm
nylon coated wire for double wire & spiral wire & calendar hanger
Nylon Coated Wire also called NC Wire, for single and double loop binding, consistent quality, environment friendly, certified by SGS testing, with the following advantages:
1. Thin nylon (other polymers) coating with extreme adhesion, no peeling or breaking during the high forming process;
2. Smooth surface processing for high forming speed;
3. Low friction resistance;
4. Continuously steady tensile strength for failure free operation;
5. Eco-friendly coating offers excellent environmental protection
6.the wire is used in printing finished products such as book binding, table calendar, loose-leaf notebook, map, diary, catalogue, and recipe.
Specifications:
Nylon Coated Wire
Advantages & Highlights:
Suitable for Womako Pro Loop, Bielomatik high speed double-O wire forming machines

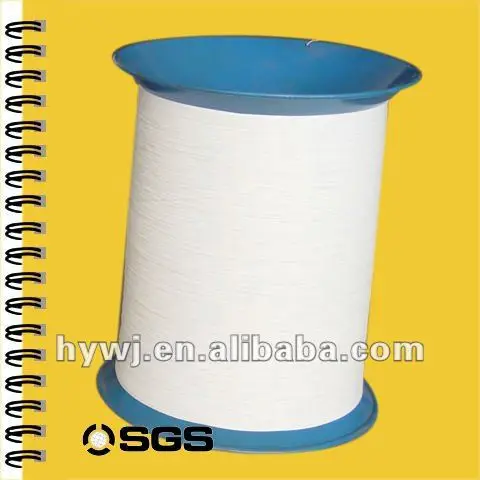

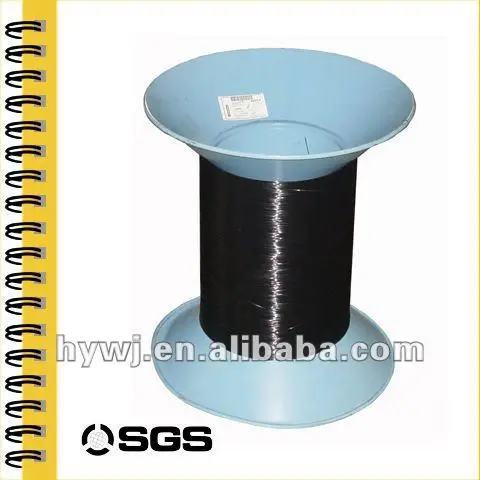

Standard colors for nylon coated wire:

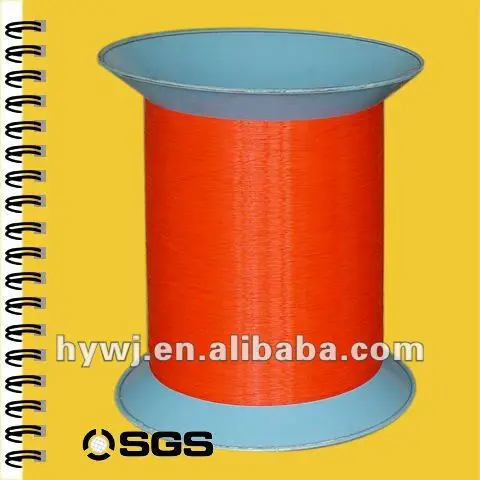

red color for nylon coated wire

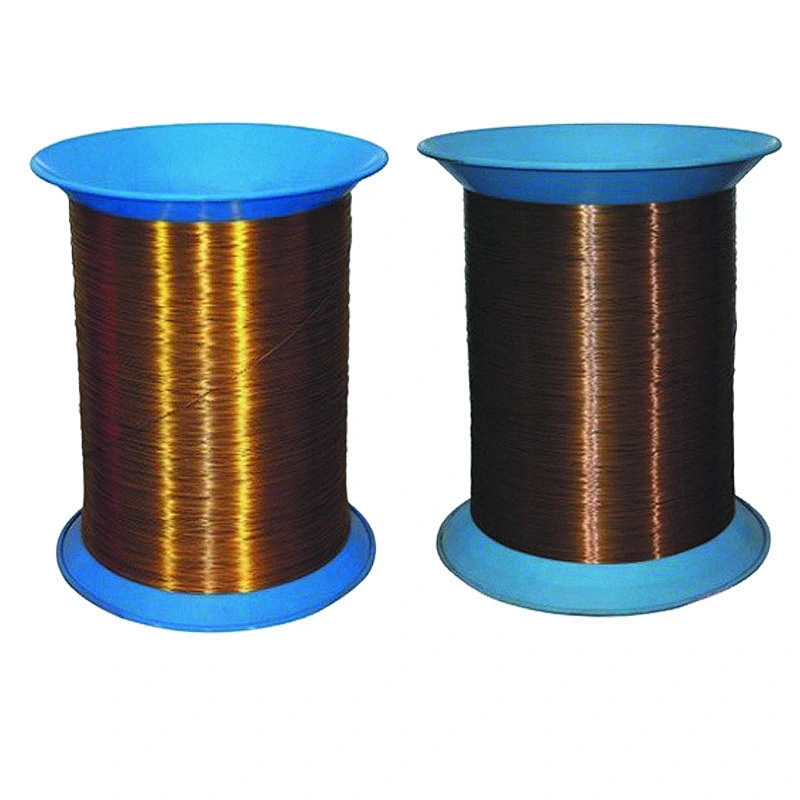

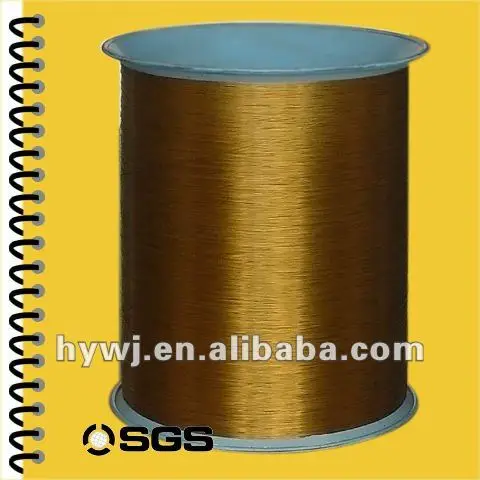

special bronze color for nylon coated wire

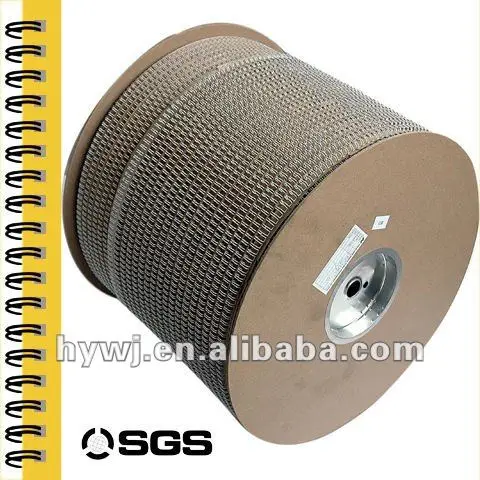

nylon coated wire used to make wire o for binding books

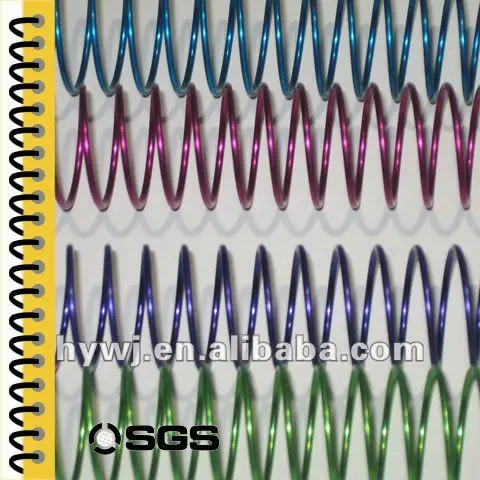

nylon coated wire used to make single spiral for binding notebook

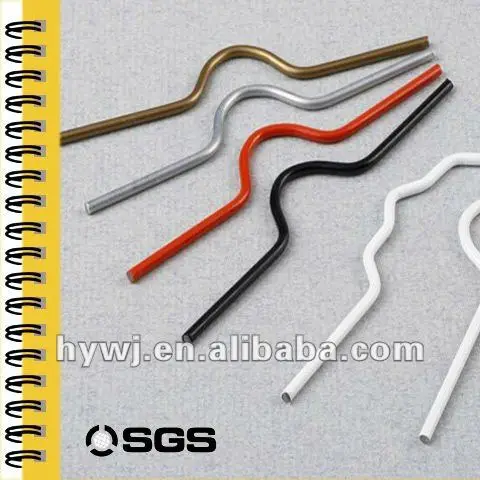

nylon coated wire filament used to make calendar hanger
Our service for nylon coated wire:
1.Sample service : Free sample for quality checking before buying available.
2.Shipping service: By sea, by air , by express available.
3.Payment service: T/T , L/C , Western Union.
4.Port service : Shenzhen port
Packing Details | Stretch Film+Pallet |
MOQ | 1 Roll |
Packing Size | 60×60×80cm |
Port | Shenzhen,China |
Diameter | Tolerance | Packages (Kgs/Roll) | Tensile Strength (N/mm2) | Meter/Kg |
0.70MM | +/-0.02MM | 500+/-5% | 710-830 | 394 |
0.80MM | +/-0.02MM | 500+/-5% | 710-830 | 294 |
0.90MM | +/-0.02MM | 500+/-5% | 710-830 | 228 |
1.00MM | +/-0.02MM | 500+/-5% | 680-800 | 182 |
1.05MM | +/-0.02MM | 500+/-5% | 680-800 | 168 |
1.10MM | +/-0.02MM | 500+/-5% | 660-780 | 149 |
1.15MM | +/-0.02MM | 500+/-5% | 660-780 | 136 |
1.2MM | +/-0.02MM | 500+/-5% | 630-750 | 124 |
1.25MM | +/-0.02MM | 500+/-5% | 630-750 | 110 |
1.30MM | +/-0.02MM | 500+/-5% | 630-750 | 105 |
1.40MM | +/-0.02MM | 500+/-5% | 600-720 | 86 |
1.50MM | +/-0.02MM | 500+/-5% | 570-690 | 78 |
2.00MM | +/-0.02MM | 500+/-5% | 750-950 | 40 |
Our nylon coated wire is made of superior steel wire, nylon material and environmental products that are developed by advanced technology. It has many characters, such as lustrous, thin and even nylon coated surface, brilliant layer, strong adhesion, abrasion resistance, moisture resistance, corrosion resistance and aging resistance. Central steel is hard and is easy to shape. It is uneasy to be deformed and is better than normal paint steel. The main packing way of nylon coated is roll, in this way, it is convenient to be used in automatic forming machine and binding machine. Paint-coat material, which is environmental and innocuous, becomes necessity for album, calendar and loose-leaf notebook. Our nylon coated wire also finds its way in applying to colorful pin and bra buckle.
Shenzhen Hong Yuan Stationery Co.,Ltd, established in 2003, is professional in manufacturing binding material&binding machine. Our mainly produced products are nylon coated double loop wire, metal single loop wire, plastic single spiral binder ring, plastic comb binding and metal calendar hangers. We also develop and design machine equipment: YO punching machine, double loop wire forming machine, double loop wire closing machine, full&semi-automatic machine,round corner cutting machine, index making machine,various spiral binding machines and so on.
Q: Are you a trading company or a factory?
A: We are a factory.
Q: Do you provide sample?
A: Various samples are availabe, freight cost is on your side.
Q: How long can I expect to get samples?
A: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 2-3 days. The samples will be sent to you by express.
Q: What kinds of color do you have?
A: We can do products according to pantone color.
Q: What are your terms of payment?
A: 30% deposit, 70% balance before delivery. 30% deposit, the balance L/C. 100% in advance. Western Union.
