- After-sales Service Provided:Engineers available to service machinery overseas
- the max. cutting thickness:80mm
- cutting speed:1200-1800times/hr
- cutting tool speciation:R3-R12
- weight:240kg
- measurement:1000x650x1400mm
- installed:the machine installed flat and firm
- name:round corner cutter
- keyword:round corner cutting machine
- certificate:CE
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Computerized:Yes
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Production Capacity:50 m/min
- Key Selling Points:Easy to Operate
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Core Components:Motor
- PLC Brand:MITSUBISHI
- Place of Origin:CN;GUA
- Applicable Industries:Printing Shops
- Applicable Industries:note book corner cutting machine
- Type:round corner cutting machine
- Brand Name:Hongyuan
- Voltage:220V/1ph/50Hz
- Dimension(L*W*H):1000X650X1400mm
- Weight:240KG
- Certification:CE
- Max. workable width:460mm
- Marketing Type:hot sale
- Warranty of core components:1 year

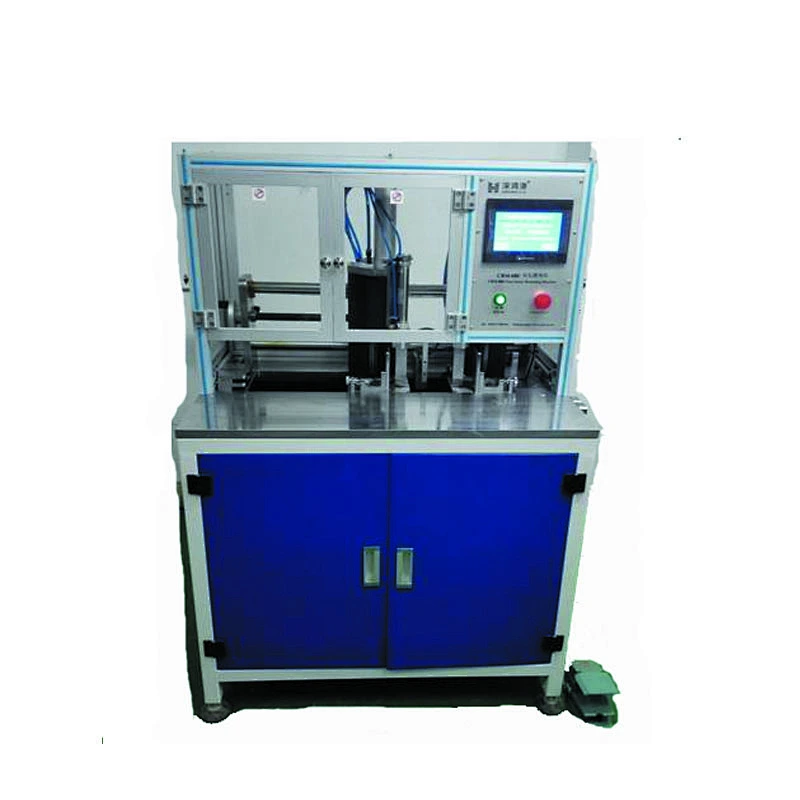

Promotional CRM-80 Round Corner Cutting Machine can cut two or one corner at one time
1. Summarization:
It is the paper cutting angle equipment that uses electricity as power, machinery clutch controlled . It can cut all sizes of angle.
2. Main technical data for our round corner cutting machine:
| the max.cutting tickness | 80mm |
| cutting speed | 1200-1800times/hr |
| max. paper width | 460mm |

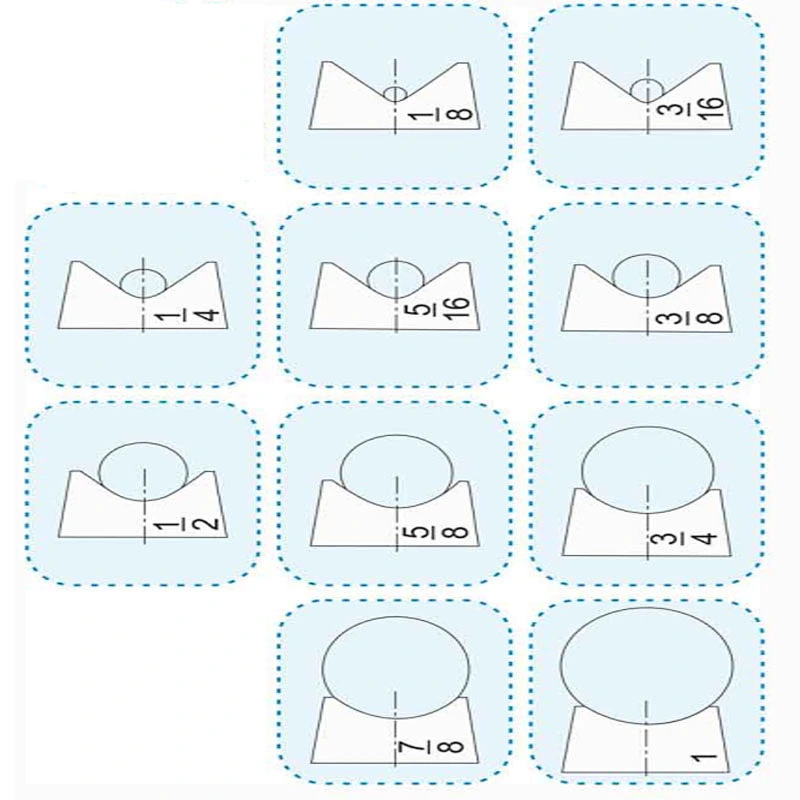

| cutting tool speciation | R3-R12 |
| power consumption | 2.2kw |
| power supply | 220V/1PH/50HZ |
| weight | 240kg |
| measurement | 1000x650x1400mm |
3. Operation of round corner cutting machine:
3.1 The machine should be installed flat and firm.
3.2 Clean the worktable's oil, drop 20#-30# oil on every oil point.
3.3 Open the front door, step the footstool, turn the big wheel counter clockwise by hand. Look for the space between upper knife and down knife whether suitable or not, and then rurn the big wheel several circle, and observe other parts whether normal
Our factory obtained ISO9001 QUALITY SYSTEM CERTIFICATION . All of our binding materials have passed SGS environmental testing and binding machine(round corner cutting machine) have passed CE certification .
Our factory specilizes in manufacturing high quality book binding materials, such as nylon coated double loop wire, plastic coil, nylon coated metal coil, nylon coated calendar hanger, plastic comb...etc and related book binding machines,punching machine,round corner cutting machine. Our company has passed ISO9001 international quality system; All of our binding materials passed strict SGS testing and binding machines with CE certificate. They meet the standards of Euro-American markets
We have full sets of advanced automatic production equipments and an experienced production management team. Since 2003, we have developed a professional and integrated system for taking your orders from sample to production, keeping you well-informed at evey stage of the process. Competitive prices, strict quality-control, professional service and prompt delivery are our main principle to work with you.
Warmly welcome your contact and visit!
