- After-sales Service Provided:Engineers available to service machinery overseas
- name:coil binding machine
- bind wire size:5/16"to 3/4"
- max binding thickness:15mm
- min binding width:150mm
- working speed:800-1300books per hour
- power supply:220V/1PH/50Hz
- device size:900*1400*1500mm
- weight:238kg
- Type:Other
- Warranty:1 Year
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Core Components:Motor
- Condition:New
- Key Selling Points:Easy to Operate
- Place of Origin:CN;GUA
- Marketing Type:hot sale
- Warranty of core components:1 year
- Voltage:220V
- Power:1PH/50Hz
- Brand Name:HONGYUAN
- Weight:238KGS
- Dimension(L*W*H):900*1400*1500MM
- Certification:CE

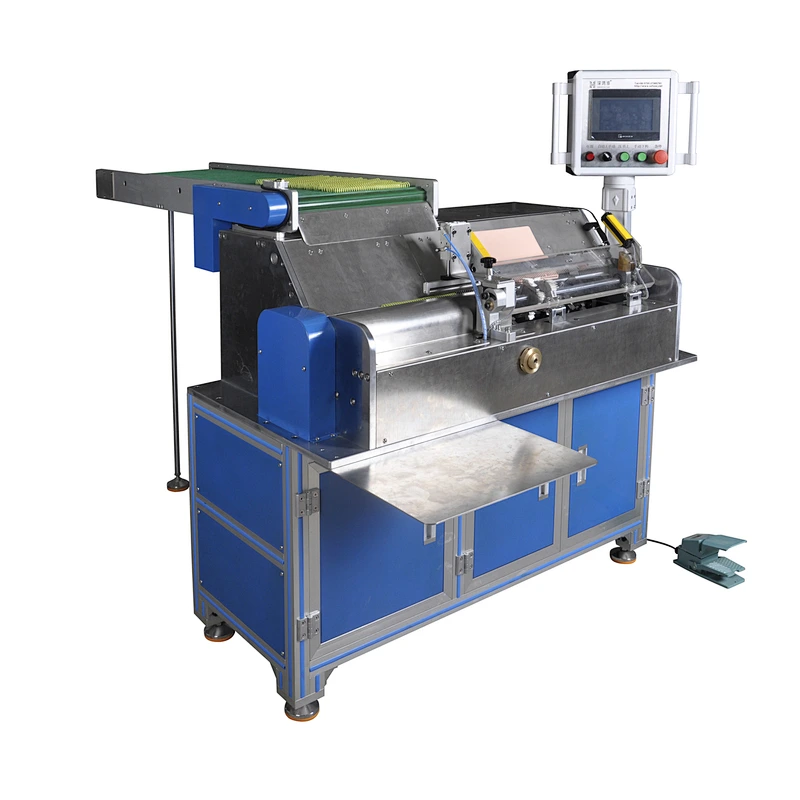

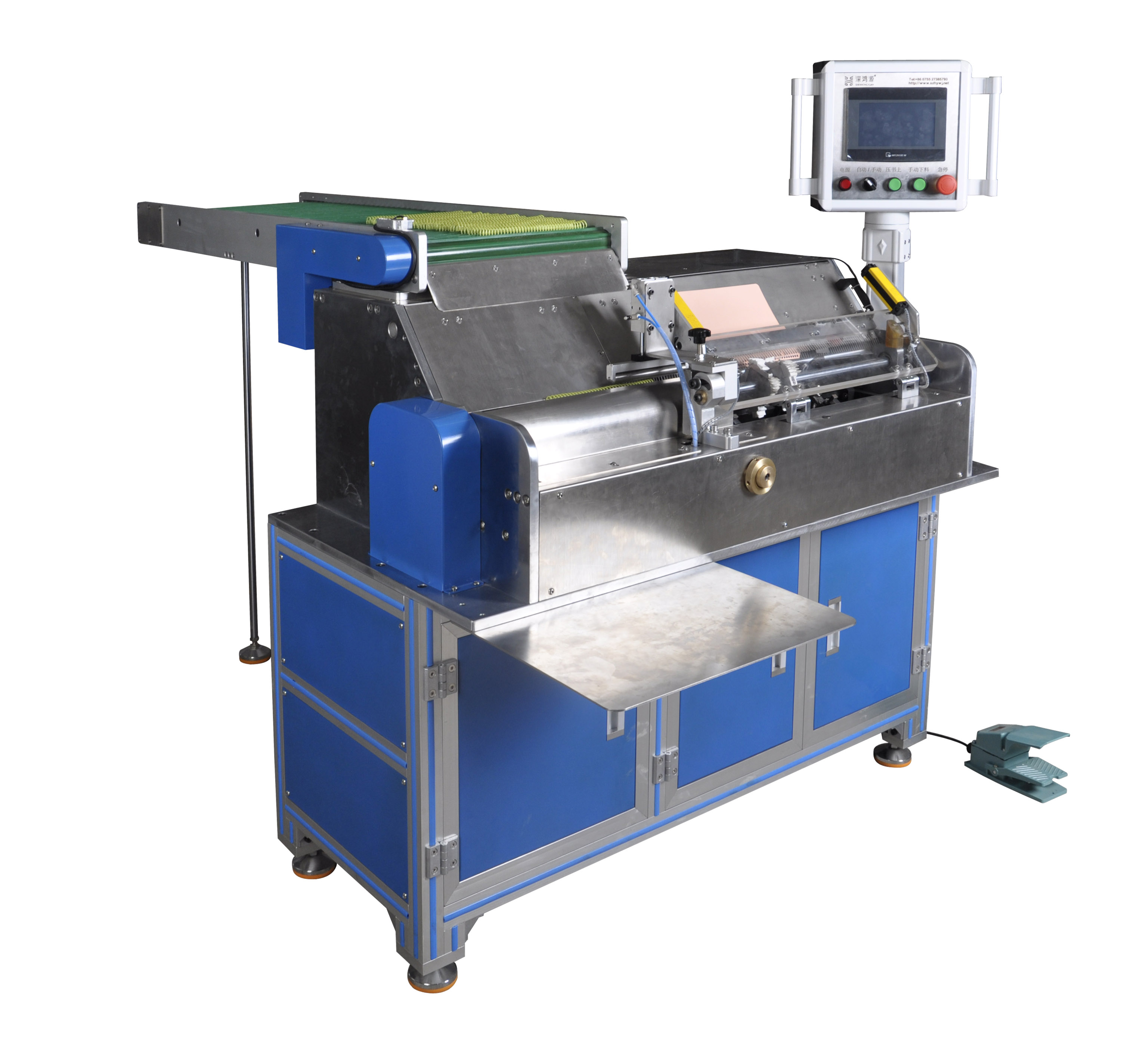

High Quality Automatic Machine For Plastic Coil Binding Machine
Two exchangeable functions for this machine:(work both single steel and plastic material)
1)Steel spiral materials: Automatic spiral forming and automatic book binding synchronously
Cutting and closing automatically after book bind;
Automatic book drop down and book collection device;
Fit various moulds and pitches, working speed up to 3 seconds per book.

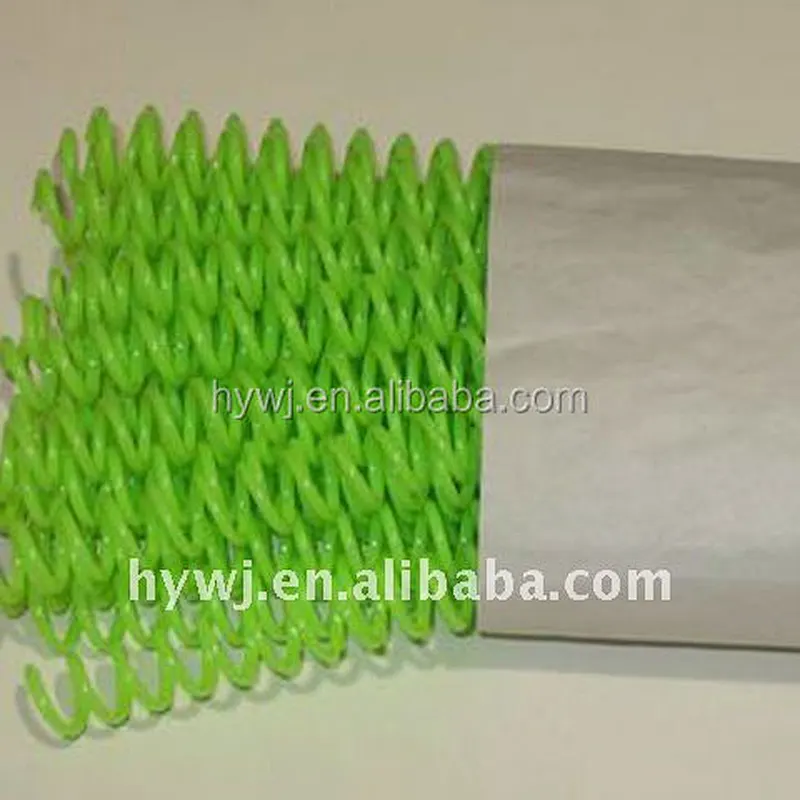

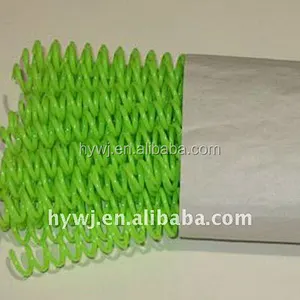

2)Plastic spiral Materials: Automatic spiral inserting, automatic cutting and closing,fit various moulds and pitches,
working speed up to 3 seconds per book.
| SPECIFICATION | |||||||
| Model | SWM-450N | ||||||
| Pitch mould available(can change) | 6mm,7mm,8mm,4:1 | ||||||
| Working size for steel spiral(need dies) | 1/4"to 1" | ||||||
| Working size for plastic spiral(need dies) | 5/16",3/8",7/16",1/2",9/16",5/8",3/4"(9mm to 20mm) | ||||||
| Binding mode for steel spiral | Autocoil forming,book insert and wire closed-up | ||||||
| Binding mode for plastic spiral | Manual put pre-cut spiral,auto book insert and wire closed up | ||||||
| Max.binding thickness(mm) | 20 | ||||||
| Max.binding width(mm) | 450 | ||||||
| Min.binding height(mm) | 420 | ||||||
| Min.binding width(mm) | 150 | ||||||
| Working speed(times/hour) | 800-1300 | ||||||
| Power supply | 220V/1ph/50-60Hz | ||||||
| Diensions:(L*W*H)mm | 900*1400*1500 | ||||||
| Weight(kgs) | 238 | ||||||
