- After-sales Service Provided:Engineers available to service machinery overseas
- keyword:paper punch equipment
- Max.Punching paper Width:600mm
- Working speed:2400-3000t/h
- N.W.:368KGS
- Max.paper width:610mm
- Max.paper thickness:2mm
- Power supply:380V/3ph or 220V/single phase

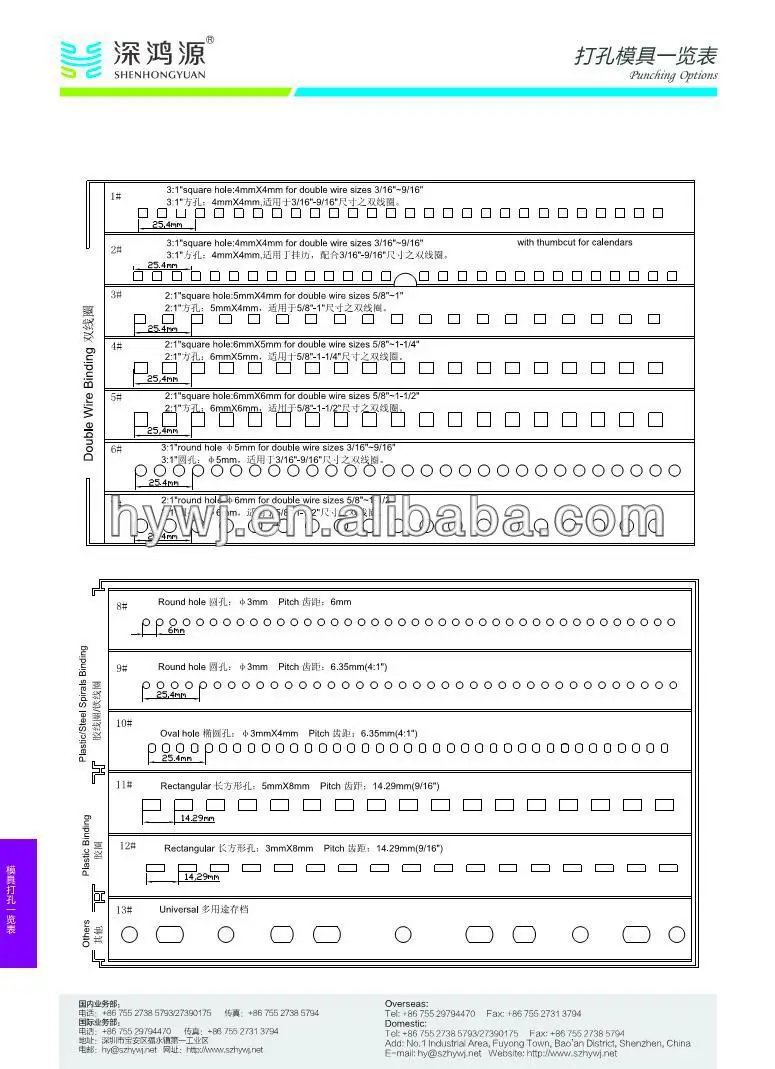

- Punchin mould:round hole or square
- Certification:CE
- Type:Other
- Warranty:1 Year
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Core Components:Motor
- Condition:New
- Application:Commodity
- Packaging Type:case
- Packaging Material:wood
- Automatic Grade:Semi-automatic
- Driven Type:Electric
- Key Selling Points:Easy to Operate
- Place of Origin:CN;GUA
- Marketing Type:hot sale
- Warranty of core components:1 year
- Voltage:380V/3PH/50Hz
- Power:1.1KW
- Brand Name:HongYuan
- Weight:368KG
- Dimension(L*W*H):1070*700*1050MM
- Certification:CE

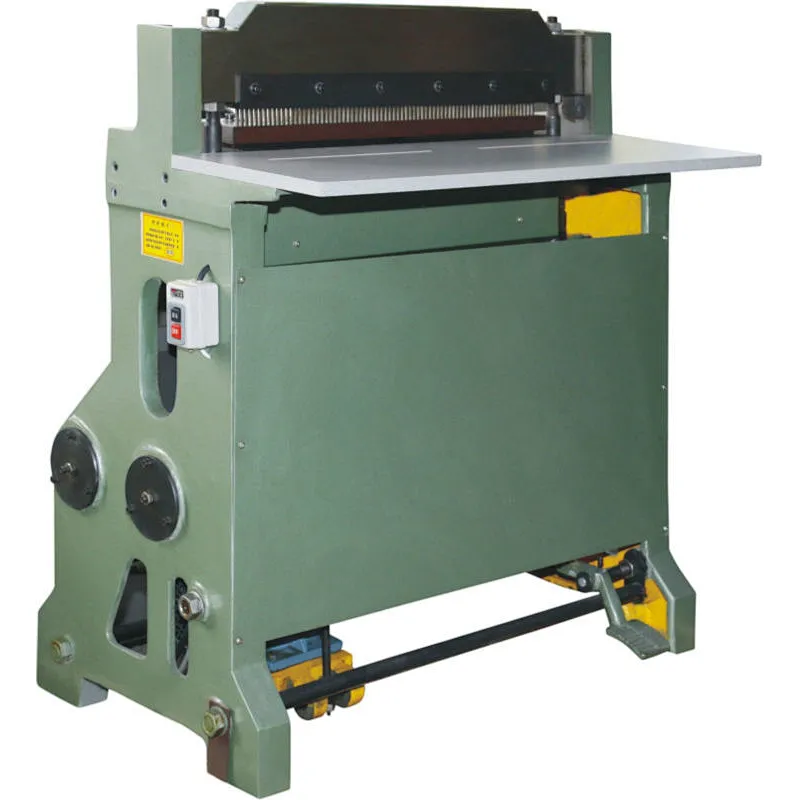

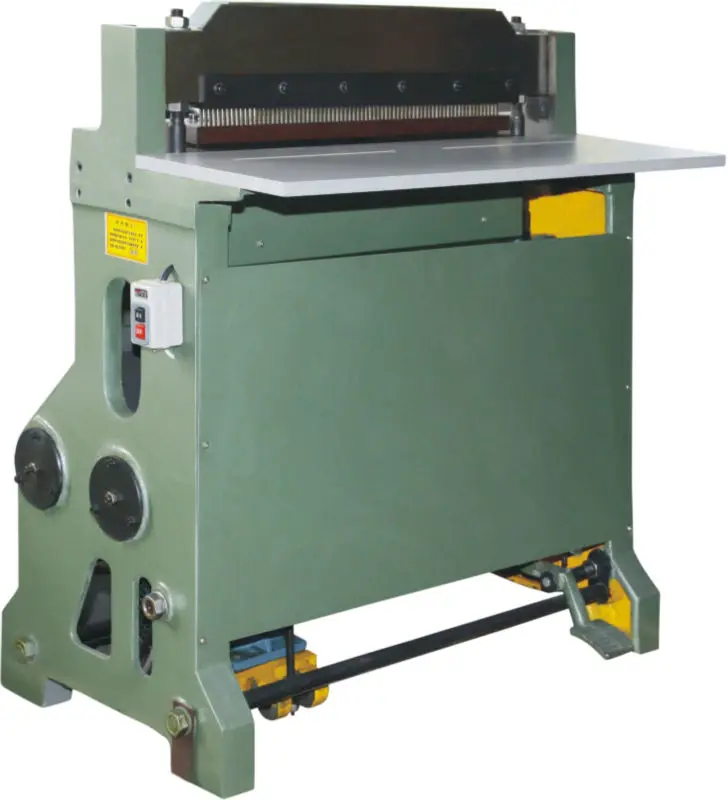

semi automatic punching machine for spiral binding
Advantages:
.Working speed up to 2400~3000 books per hour
.Max. Paper thickness per time: 2 mm.
.Punching length can be 610mm(Max.)
.New slide-type pneumatic components extend the machine life and ensure the machine stability
| SPM-610 Specifications | |
| Feeding Modle | manual delivery |
| Max. Speed | 4800 t/h |
| Max.Paper Width | 610 mm |
| Working Speed | 2,400-3000 t/hour |
| Size of Worktable(W*D) | 890*295mm |
| Power Consumption | 0.37KW |
| Stroke | 17 mm |
| Main Machine Dimensions | 970*800*1000mm |
| Net Weight | 368KG |
| Power supply | 380V 3PH 50HZ |
