- machine:calendar making
- feeding mode:manual
- double wire:1/4"-7/8"
- max.paper width:520mm
- max.binding width:507mm
- min,paper length:30mm
- working speed:1000-1500 cycles/hr
- power:220V/1ph/50-60Hz
- air pressure:6-8 bar
- net weight:300kg
- Type:Other
- Warranty:1 Year
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Core Components:PLC
- Core Components:Motor
- Condition:New
- Application:book binding
- Packaging Type:wooden box
- Packaging Material:wood
- Automatic Grade:Automatic
- Driven Type:Electric
- Key Selling Points:High Safety Level
- Place of Origin:CN
- Video outgoing-inspection:yes
- Machinery Test Report:CE
- Marketing Type:hot sale
- Warranty of core components:1 year
- Voltage:220V
- Power:1.5KW
- Brand Name:HONGYUAN
- Weight:300kg
- Dimension(L*W*H):1680*730*1380mm
- Certification:CE

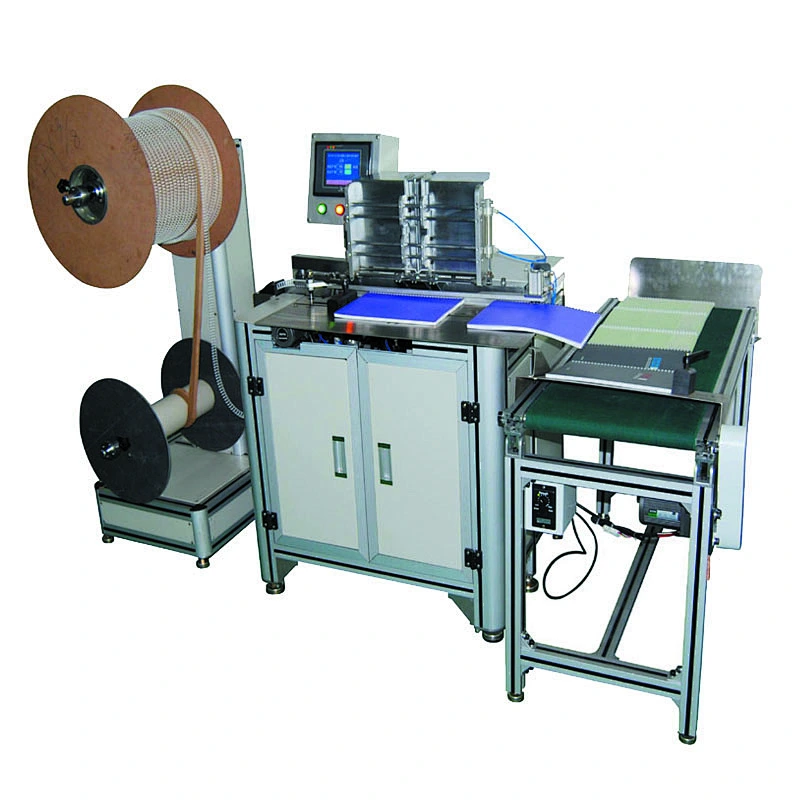

calendar making machine is special for bind calendar,
Our calendar making machine working speed up to 1200-1700 books per hours.
Bining diameters can be 1-4"to 7/8"
Skip-bindings at one time are available, up to 5 skip binding per once
Touch screen and automatic error reminder
Automatic hanger binding device, automatic books convey device
MODEL |
| DWC-520A |
Feeding Model |
| Manual |
Handing of Double Wire |
| Automatic cutting,insertion&closing&conveying |
Wire Specifications |
| Diameter1/4"-7/8" Pitch:3:1,2:1 |
Max.Paper Width (mm) |
| 520 |
Max.Binding Width (mm) |
| 507 |
Min.Paper length (mm) |
| 75 |
Working Speed (cycles/hy ) |
| 1200-1700 |
Power Supply |
| 220V/1ph/50Hz |
Air Compressor(not included) (kw) |
| 1.5 |
Air Pressure (bar) |
| 6-8 |
Machine Dimensions (mm) |
| 1000(L)x760(W)x1230(H) |
Outside Wooden Box Dimensions (mm) |
| 1480(L)x1050(W)x1570(H) |
Net Weight (kg) |
| 271 |
Gross Weight (kg) |
| 350 |
Dimensions of Pay-off Unit (mm) |
| 490(L)x760x1230 |
Neet Weight of Pay-off Unit |
| 65 |
Binding moulds:
B)3:1 pitch, 1/4' coil diameter
C)3:1 pitch, 5/16' coil diameter
D)3:1 pitch, 3/8' coil diameter
E)3:1 pitch, 7/16' coil diameter
F)3:1 pitch, 1/2' coil diameter
G)3:1 pitch, 9/16' coil diameter
H)2:1 pitch, 5/8' coil diameter
I )2:1 pitch, 3/4' coil diameter
J)2:1 pitch, 7/8' coil diameter
Our company are specialized in manufacturing high quality book binding machines, such as nylon-coated double loop wire,plastic spiral, calendar hager, plastic combs ect., and related binding machines. We have passed ISO9001 international quality system; All of our binding materials are passed strict SGS testing and meet the standard of European environmental requirements. Most of our machines have CE.
We have full sets of advanced automatic production equipments and an experienced production management team. Since 2003, we have developed a professional and integrated system for talking your order from sample to productionk, keeping you well informed at every stage of the process. Competive prices, strict qualtiy-control, professional service and prompt delvery are our main principle to work with you. Warmly welcome your contact and visit !
