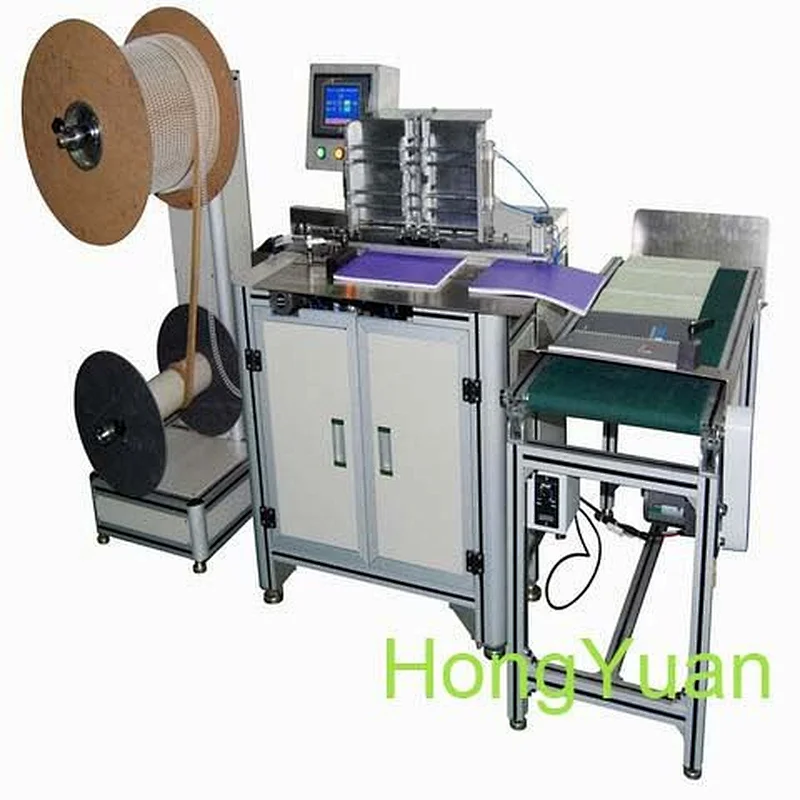

DWC-520A Double Loop Wire Book Binding Machine

Price:: US $ 5000.00-9000.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 100.0 piece / Week
Country of Origin: Shenzhen,China

Quantity:

Product Description

After-sales Service Provided:Engineers available to service machinery overseas
Working Speed:500~1000 cycles/hour
Type:Other
Warranty:1 Year
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Warranty of core components:1 Year
Core Components:Motor
Condition:New
Application:Machinery & Hardware
Packaging Type:case
Packaging Material:wood
Automatic Grade:Semi-automatic
Driven Type:Pneumatic
Key Selling Points:Flexible Manufacturing
Place of Origin:CN;GUA
Applicable Industries:Printing Shops
Applicable Industries:Advertising Company
Applicable Industries:binding
Marketing Type:hot sale
Voltage:220V/1PH/50HZ
Power:1.5kw
Brand Name:hongyuan
Weight:325
Dimension(L*W*H):1000mm x 760mm x 1230mm
Certification:CE

double loop wire book binding machine
Advantages

* Can bind up to 1200-1700 book per hour

* Setting are easily done with the intuitive touch screen

* Up to five-step skip binding.
* Can bind double wire of diameter up to 7/8"
* Electricatic parts are of prestigious Japanese and US brands
* Optional hanger attachment

double loop wire book binding machine Specifications

MODEL	DWC-520A
Feeding Model	Manual
Handing of Double Wire	Automatic cutting, insertion & closing
Wire Specifications	Diameter1/4"-7/8"Pitch4:1",3:1",2:1"
Max.Paper Width mm	520
Max.Binding Width mm	507
Min.Paper length mm	75
Working Speed cycles/hr	1200-1700
Size of Worktable(W×D) mm	660x300
Power Supple	220V/1ph/50Hz
Air Compressor(not included) kw	1.5
Air Pressure bar	6-8
Machine Dimensions(W×D×H) mm	1000x760x1230
Net Weight kg	271
Dimensions of Pay-off Unit(W×D×H) mm	490x760x1230
Neet Weight of Pay-off Unit	54
