- After-sales Service Provided:Engineers available to service machinery overseas
- Maximum.Binding paper Width:507mm
- Working speed:1200-1700 t/h
- N.W.:270KG
- Type:Other
- Warranty:1 Year
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Motor
- Condition:New
- Application:Commodity
- Packaging Type:Cartons
- Packaging Material:wood
- Automatic Grade:Semi-automatic
- Driven Type:Electric
- Key Selling Points:Easy to Operate
- Place of Origin:CN;GUA
- Voltage:220v
- Power:1.5PH
- Brand Name:HongYuan
- Weight:350
- Dimension(L*W*H):1600X760X1230
- Certification:CE

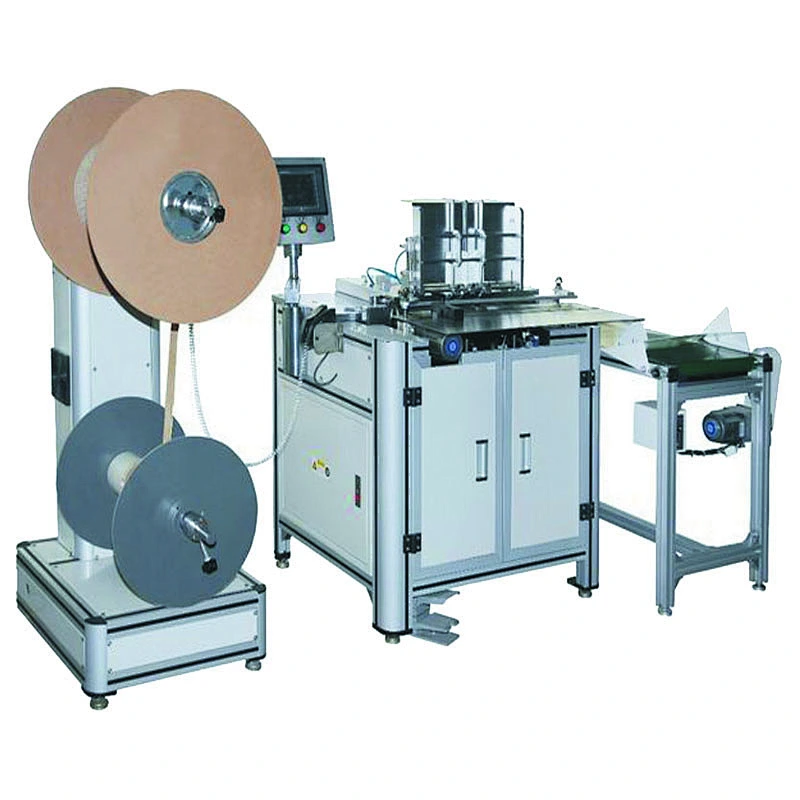

DWC-520A Semi-Automatic double wire closing machine for notebook,calendar
Advantages:
.Working speed up to 1200~1700 books per hour
.Binding diameters can be 1/4"- 7/8", pitch can be 3:1 or 2:1
.Skp-binding at one time are available,up to 5 skips binding per once
.Touch screen and automatic error reminder
.Automatic hanger binding device ,automatic books convey device
.New slide-type pneumatic components extend the machine life and ensure the machine stability
| DWC-520A Specifications | |
| Feeding Modle | manual delivery |
| Wire spec | auto cut,bind |
| Max.Paper Width | 520 mm |
| Max.Binding Width | 507mm |
| Min.Paper length | 75mm |
| Working Speed | 1,200-1700 t/hour |
| Size of Worktable(W*D) | 600*300mm |
| Air Compressor(not include) | 1.5 KW |
| Air Pressure | 6-8 ba |
| Main Machine Dimensions | 1,000*760*1,230 mm |
| Net Weight | 270 KG |
| Dimensions of pay-off unit | 490*760*1230mm |
| Net weight of pay-off unit | 65 KG |
