- keyword:hole punching machine for binding
- Max.Punching paper Width:610mm
- Working speed:2400-3000t/h
- N.W.:368KGS
- Power supply:380V/3ph/50Hz
- Type:Punching Machine
- Different hole style:round, square, oval
- Packing size:1140*800*1220mm
- Gross weight:474kg
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Punching Machine
- Computerized:No
- Warranty:1 Year
- After-sales Service Provided:Online support
- Production Capacity:50 m/min
- Key Selling Points:Easy to Operate
- Max. workable width:610mm
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:hot sale
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN
- Brand Name:HY
- Voltage:380V
- Dimension(L*W*H):1070*700*1050
- Weight:368KG
- Certification:CE

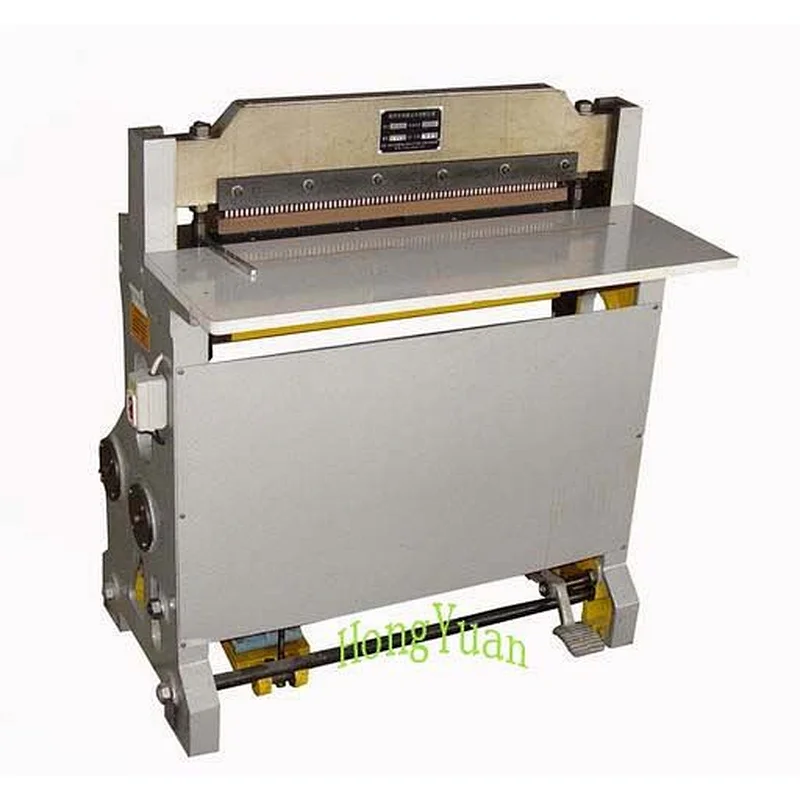

Hole punching machine for binding,hole puncher machine
Advantages:
.Working speed up to 2400~3000 books per hour
.Max. Paper thickness per time: 2 mm.
.Punching length can be 610mm(Max.)
.New slide-type pneumatic components extend the machine life and ensure the machine stability
| SPM-610 Specifications | |
| Feeding Modle | manual delivery |
| Max. Speed | 4800 t/h |
| Max.Paper Width | 610 mm |
| Working Speed | 2,400-3000 t/hour |
| Size of Worktable(W*D) | 890*295mm |
| Power Consumption | 0.37KW |
| Stroke | 17 mm |
| Main Machine Dimensions | 970*800*1000mm |
| Net Weight | 368KG |
| Power supply | 380V 3PH 50HZ |
