- hole punching machine:punching equipment
- paper punch:paper punching
- max papersize:400*380mm
- min paper size:135*125mm
- max paper thickness:2mm
- working speed:140 times per minute
- paper thickness:from 60g to 400g
- different punching mould:round, square, oval
- power supply:380V/3ph/50Hz
- Power:3KW
- CNC or Not:Normal
- Condition:New
- Machine Type:Punching Machine
- Power Source:electralical
- Key Selling Points:Automatic
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;GUA
- Nominal Force (kN):/
- Brand Name:HY
- Voltage:380V
- Dimension(L*W*H):2200*1000*1300mm
- Certification:CE
- Weight (T):0.7
- Warranty:1 year
- Marketing Type:hot sale
Automatic Punching Paper Equipment
Advantages For Full-Automatic Paper Punching Machine (APM-400) :
| SPECIFICATION | ||||||
| Model | APM-400 | |||||
| Max.paper size (with conveyor): | 400*380mm(W*L) | |||||
| Min.paper size (with conveyor): | 135*125mm(W*L) | 140*100mm(W*L) also can work | ||||
| Max.punching width(with conveyor): | 400mm | |||||
| Max. paper thickness | 2mm | |||||
| Paper Specifications | 60-400g/m2 | |||||
| Max. pile height | 370mm | |||||
| Max.working speed: | 8400 times/hour (normal 7200) | |||||
| Min.working speed: | 1800 times/hour | |||||
| Power supply: | 380V/3ph/50Hz | |||||
| Power consumption: | 3kw | |||||
| Diensions:(L*W*H) | 2200*1000*1300MM | |||||
| Weight: | 700KGS | |||||
| Air compressor: | 0.37kw | |||||
| Air pressure: | 4-6 bar | |||||

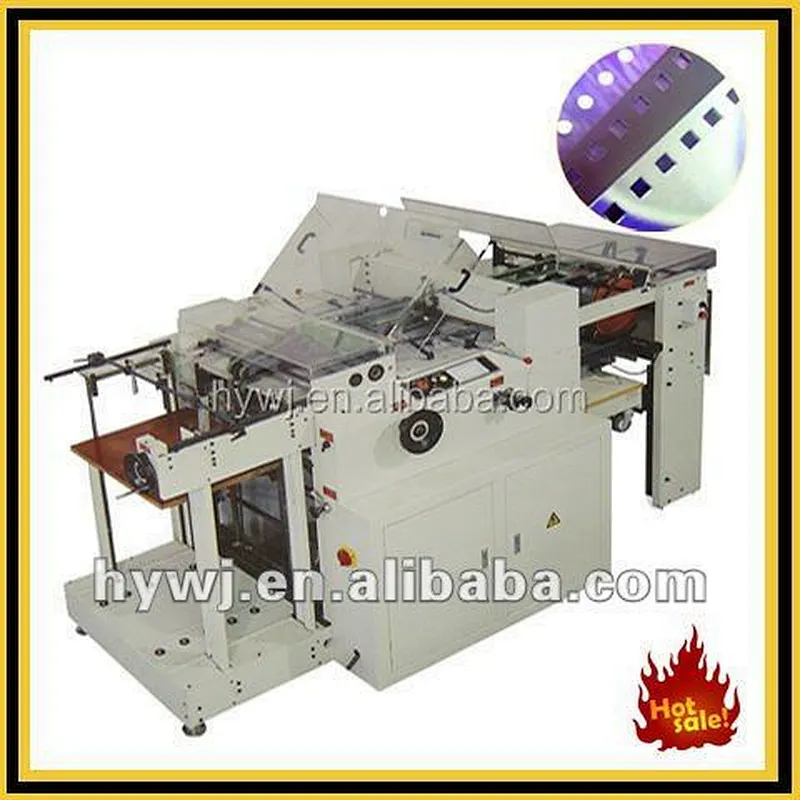

Picture For Full-Automatic Paper Punching Machine (APM-400) :
Advantages For Full-Automatic Paper Punching Machine (APM-600) :
| SPECIFICATION | |||||
| Model | APM-600 | ||||
| Max.paper width*length(with high pile reception unit): | 530*500mm | ||||
| Max.paper size (with conveyor): | 600*500mm (W*L) | ||||
| Min.paper width*length(with high pile reception unit): | 140*220mm | ||||
| Min.paper size (with conveyor): | 140*100mm(W*L) | ||||
| Max.punching width(with high pile reception unit): | 520mm | ||||
| Max.punching width(with conveyor): | 590mm | ||||
| Max. paper thickness | 2mm | ||||
| Paper Specifications | 60-500g/m2 | ||||
| Max. pile height | 880mm | ||||
| Max.working speed: | 8280 times/hour (normal 5400) | ||||
| Min.working speed: | 1500 times/hour | ||||
| Power supply: | 380V/3ph/50Hz | ||||
| Power consumption: | 3kw | ||||
| Diensions(converyor):(L*W*H) | 2800*1470*1400MM | ||||
| Weight: | 1400KGS | ||||
| Air compressor: | 0.37kw | ||||
| Air pressure: | 4-6 bar | ||||

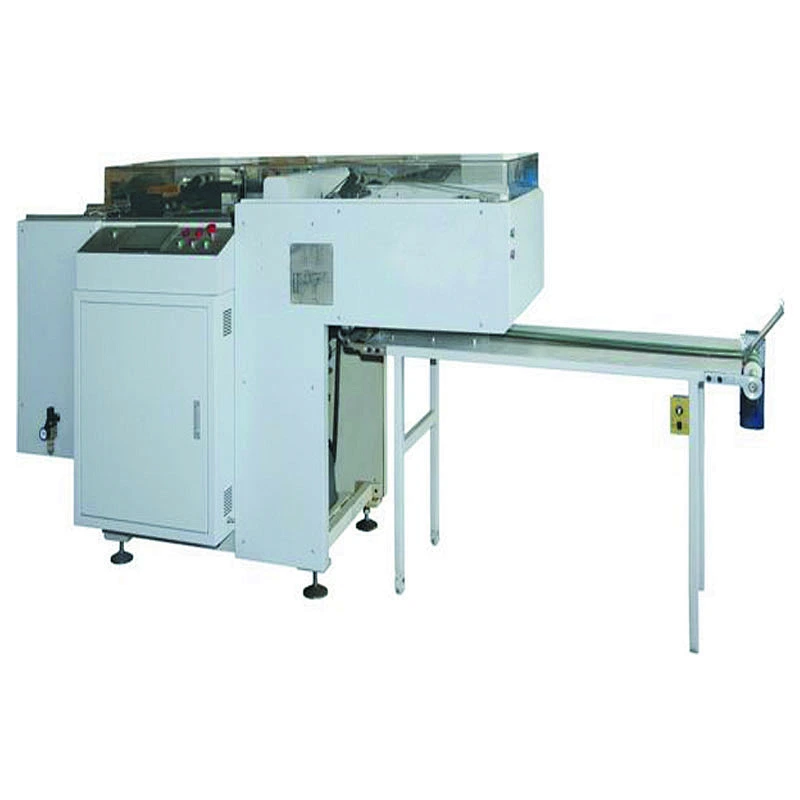

Picture For Full-Automatic Paper Punching Machine (APM-600) :

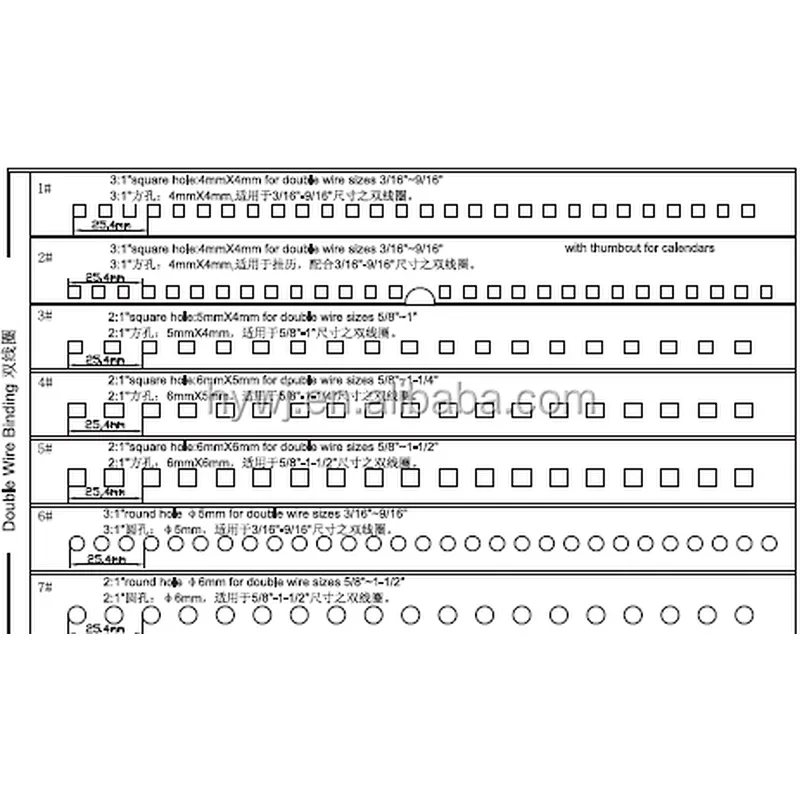

We can offer choice of different punching models to cater for your required punching applications. Also a wide range of high quality punching tools is available to ensure that every stadard punching requirement.
A)3:1 pitch, 4mm x 4mm Square Hole
B)2:1 pitch, 5mm x 4mm Square Hole
C)2:1 pitch, 4.2mm x 4.2mm Square Hole
D)2:1 pitch, 4.2mm x 4.2mm Square Hole with thumbnut for calendars
E) 3:1 pitch, 4mm x 4mm Square Hole with thumbnut for calendars
F)6mm pitch, 3mm diameter Round Hole
G)6.35mm pitch, 3mm diameter Round Hole
H)14.28mm(9/16”) pitch, 3mm x 8mm Rectangular Hole
Corporate Introduction:

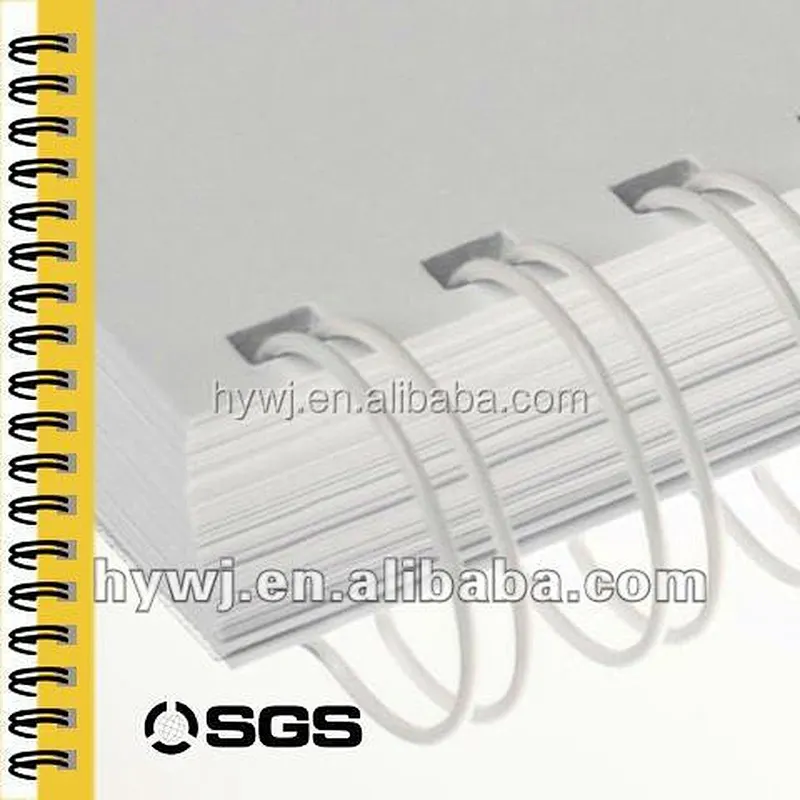

We, Shenzhen hongyuan stationery Co.,Ltd specialized in manufacturing high quality book binding materials, such as nylon-coated double wire, plastic spirals, calendar hanger, plastic combs ect. and related binding&punching machines.
Our compay has passed ISO9001 international quality system, all of our binding materials have passed strict SGS testing and met the standard of European environmental requirements.
We have full sets of advanced automatic production equipments and an experienced production management team.
Since 2003, we have developed a professional and integrated system for taking your order from sample to production, keeping you well informed at every stage of the process. Competitive prices, strict quality-control, professional service and prompt delivery are our main principle to work with you. Warmly welcome your contact and visit.
The building of our factory
Double loop wire producing line
Should we have chance to meet at Carton fair in Guangzhou & Paperworld in Shanghai?
Hello, my friend!
Hope you are satisfied with all our introduction, more details pls contact us, we are glad to be your best sources support.
