- After-sales Service Provided:Engineers available to service machinery overseas
- tab lamination machine:paper machine
- Type:Laminating Machine
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Core Components:Motor
- Condition:New
- Application:office stationery
- Packaging Type:in wooden
- Packaging Material:wood
- Automatic Grade:Automatic
- Driven Type:Electric
- Key Selling Points:Easy to Operate
- Place of Origin:CN;GUA
- Video outgoing-inspection:yes
- Machinery Test Report:CE
- Marketing Type:hot sale
- Warranty of core components:1 year
- Voltage:220V
- Brand Name:HongYuan
- Dimension(L*W*H):1160*700*1070MM
- Weight:130KG
- Certification:CE
- Warranty:1 year

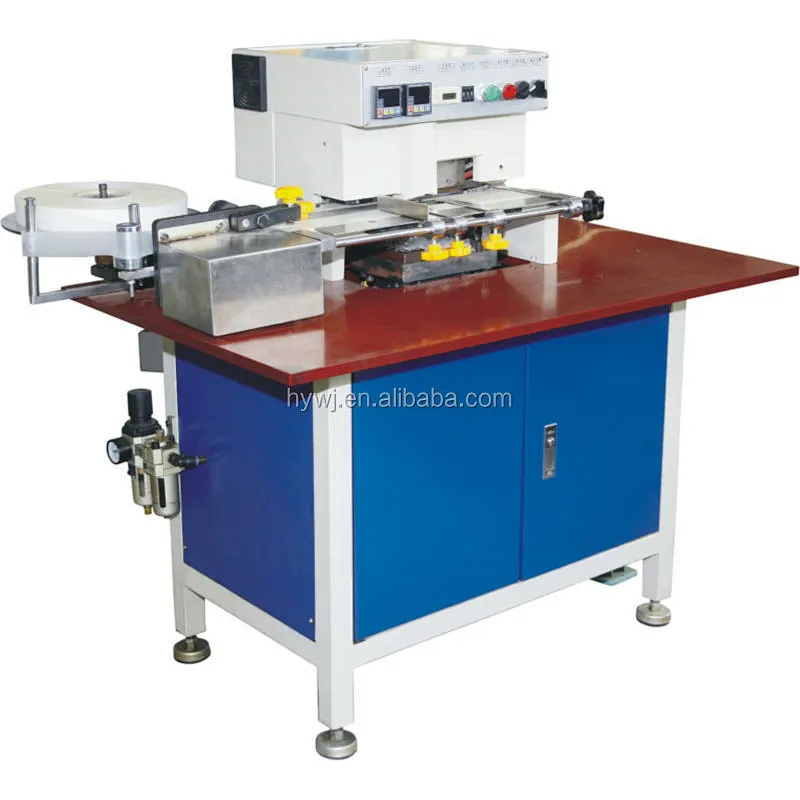

TLM-330 Mylar Tab Lamination Machine, index tab laminating, tab lamination
Advantages:
1. Easy to operate. Working speed up to 2,400 pcs per hour.
2. No need to change moulds for different width of tabs.
3. Retrofitted for the lamination of insert tabs are available
4. Max. paper width up to 400mm
| TLM330 Specifications | |
| max.paper size (l*w) mm | 330*300 |
| min paper size (l*w) mm | 110*85 |
| Tabbing width mm | 25--41 |
| Tabbing length mm | 10--110 |
| lamination time (sec.) | 0.5-1.4 |
| temperature control. | 50--100 |
| working speed cycles/hr | 2400--3000 |
| size of worktable (w*d) mm | 950*160 |
| Air pressure | 6-8 bar |
| air compressor power (not included) | 1.5KW |
| Power supply | 220V 1PH 50HZ |
| dimension (w*d*h) mm | 1160*700*1070 |
| net weight | 130kg |
