- After-sales Service Provided:Engineers available to service machinery overseas
- Max.Binding paper Width:507mm
- Working speed:1200-1700 t/h
- N.W.:300KG
- Max. Paper Width:520 mm
- Min. Paper Length:30 mm
- Size of Worktable(WXD):660X300mm
- Power:220V/1ph/50-60Hz
- Air Compressor (not included):1.5KW
- Warranty:1 year
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Binding Machine
- Computerized:Yes
- Warranty:1 year
- Production Capacity:50 m/min
- Key Selling Points:Easy to Operate
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Core Components:Motor
- PLC Brand:MITSUBISHI
- Place of Origin:CN;GUA
- Brand Name:Hongyuan
- Voltage:220V
- Dimension(L*W*H):1000*760*1230MM
- Weight:271KG
- Certification:CE
- Max. workable width:520mm
- Marketing Type:hot sale
- Warranty of core components:1 year

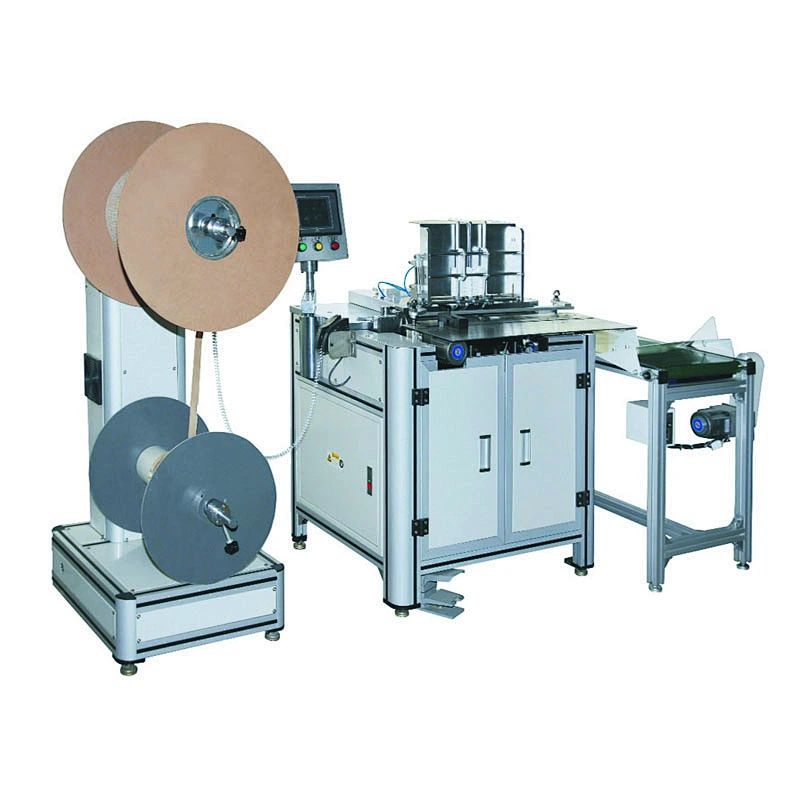

Automatic double wire binding machine for book and calendar DWC-520A
Advantages:
.Working speed up to 1200~1700 books per hour
.Binding diameters can be 1/4"- 7/8", pitch can be 3:1 or 2:1
.Skp-binding at one time are available,up to 5 skips binding per once
.Touch screen and automatic error reminder
.Automatic hanger binding device ,automatic books convey device
.New slide-type pneumatic components extend the machine life and ensure the machine stability
| DWC-520A Specifications | |
| Feeding Modle | manual delivery |
| Wire spec | auto cut,bind 1/4''-7/8''(pitch:3:1 or 2:1) |
| Max.Paper Width | 520 mm |
| Max.Binding Width | 507mm |
| Min.Paper length | 75mm |
| Working Speed | 1,000-1500 t/hour |
| Size of Worktable(W*D) | 660*300mm |
| Air Compressor(not include) | 1.5 KW |
| Air Pressure | 6-8 ba |
| Main Machine Dimensions | 1,680*730*1,380 mm |
| Net Weight | 300KG |
