- After-sales Service Provided:Engineers available to service machinery overseas
- automatic paper punching machine:automatic paper punching machine
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Punching Machine
- Computerized:Yes
- Warranty:1 Year
- After-sales Service Provided:Online support
- Production Capacity:50 m/min
- Key Selling Points:Easy to Operate
- Max. workable width:400mm
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:hot sale
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;GUA
- Brand Name:hongyuan
- Voltage:380V
- Dimension(L*W*H):2200*1000*1300MM
- Weight:700KG
- Certification:CE

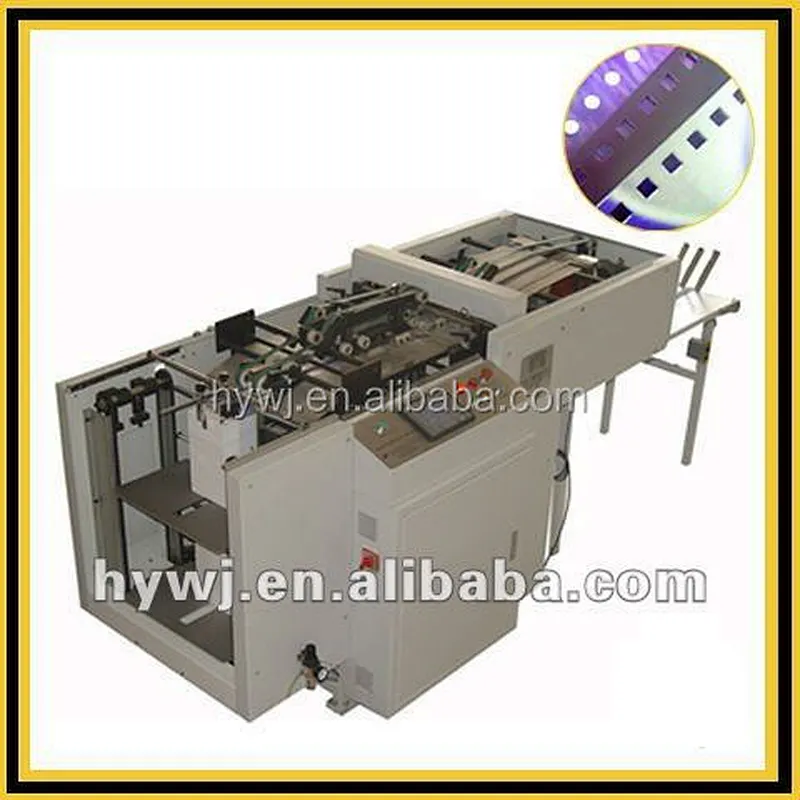

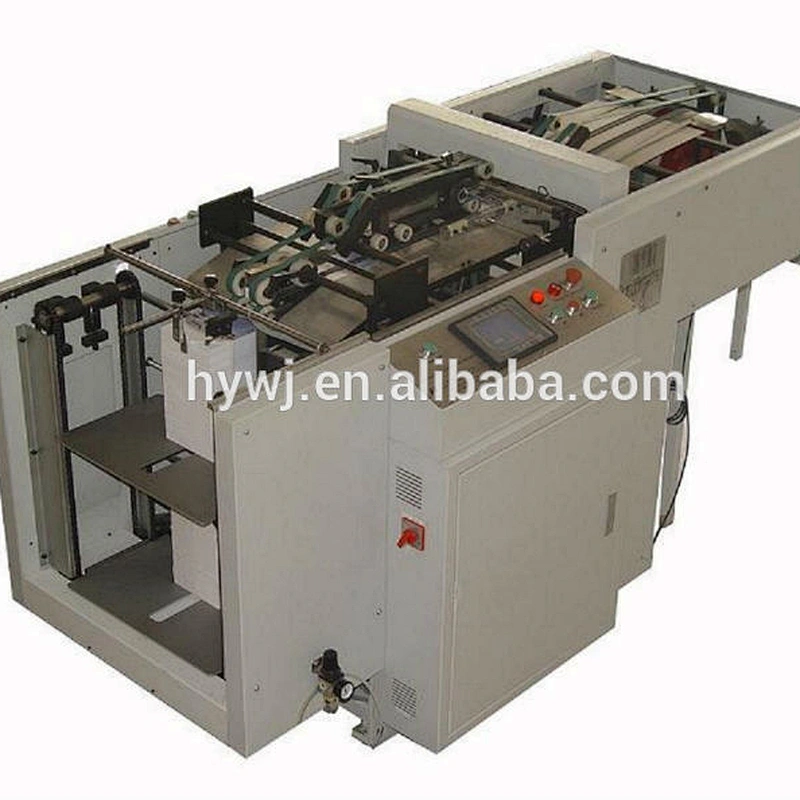

automatic paper punching machine APM-400/600
a. Punching speed up to 90 rpm
b. Max.punching width up to 590mm(with the conveyor option)
c. Two discharge options(a high pile reception unit or a converyor) are available
d. Handle different paper thickness from 60gsm to 500 gsm.
Max. Paper Size , with high pile reception unit 530*500 mm
with conveyor 600*500 mm
Min.Paper size mm, with high pile reception unit 140*220 mm
with converyor 140*100 mm
Max.punching width,with high pile reception unit 520mm
with converyor 590mm
Max.paper thickness, 2mm
Paper specification, 60-500 g/m2
Max.pile height, 880mm
Max.cycle speed, 8280cycles/hr
Normal working speed, 5400 cycles/hr
Min working speed, 1500 cycles/hr
Power consumption, 3KW
Dimensions (W*D*H), 2800*1280*1400mm
Machine net weight, 1400kg
Air compressor, 0.37kw
Air Pressure, 4-6 bar
With compact design for heavey duty use and easy to use. We can offer choice of different punching models to cater for your required punching applications. Also a wide range of high quality punching tools is available to ensure that every stadard punching requirement.
