- index tab machine:index tab laminating machine
- Type:Laminating Machine
- Power:1.5kw
- Driven Type:Electric
- Packaging Material:Wood
- Certification:CE
- Automatic Grade:Automatic
- Application:office stationery
- Packaging Type:in wooden
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Product Type:Paper Plate Machine
- Processing Type:Laminating Machine
- Certification:ce
- Warranty:1 Year
- After-sales Service Provided:Online support
- Production Capacity:50 pcs/min
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:hot sale
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;GUA
- Brand Name:HongYuan
- Voltage:220V
- Dimension(L*W*H):1160*700*1070MM
- Weight:130KG

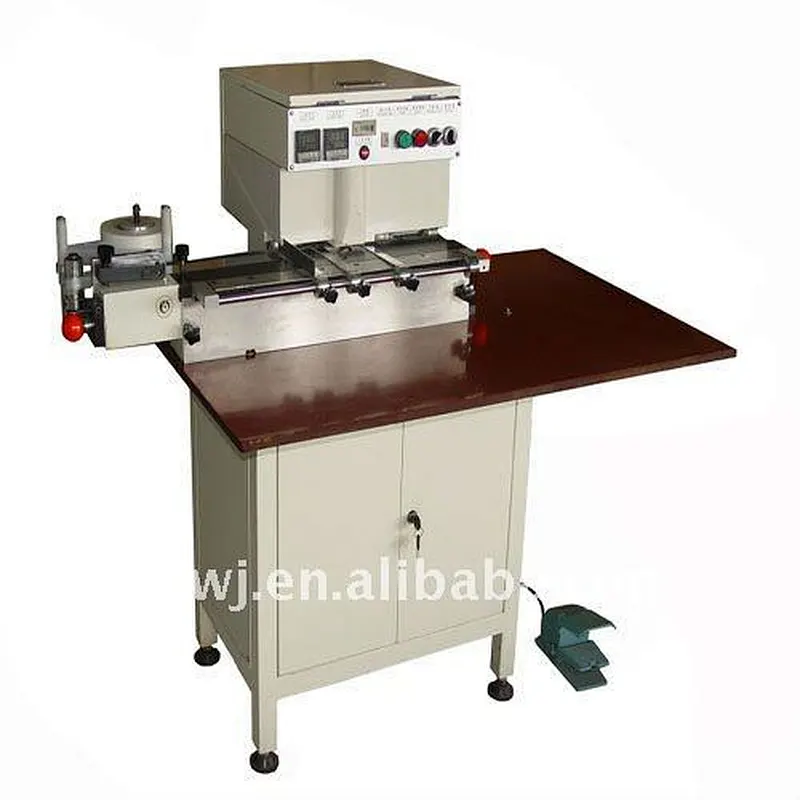

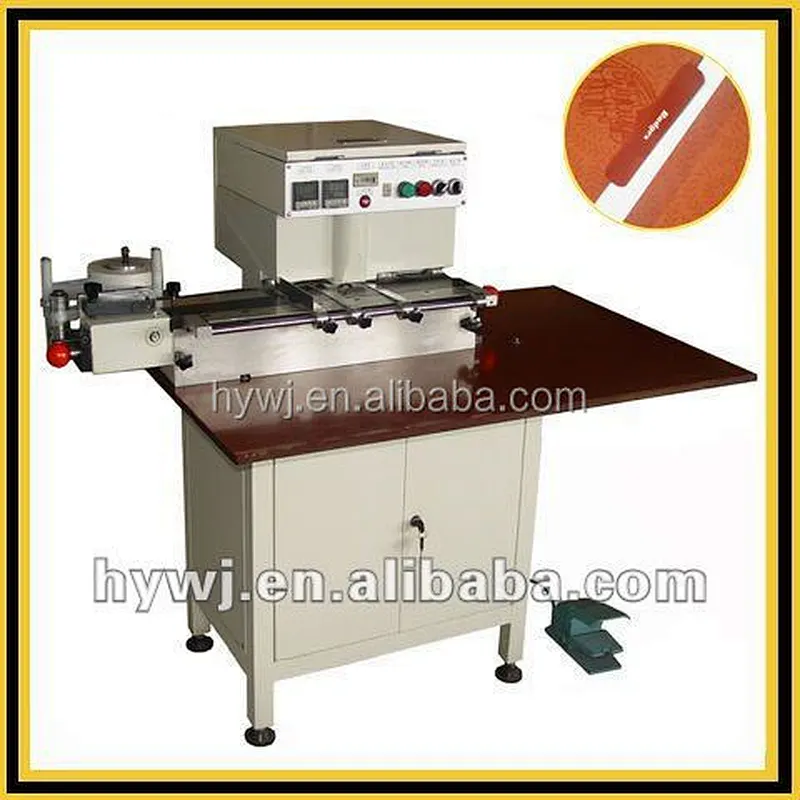

TLM-330 Index Tab Machine, index tab laminating, tab lamination
Advantages:
1. Easy to operate. Working speed up to 2,400 pcs per hour.
2. No need to change moulds for different width of tabs.
3. Retrofitted for the lamination of insert tabs are available
4. Max. paper width up to 400mm
| TLM330 Specifications | |
| max.paper size (l*w) mm | 330*300 |
| min paper size (l*w) mm | 110*85 |
| Tabbing width mm | 25--41 |
| Tabbing length mm | 10--110 |
| lamination time (sec.) | 0.5-1.4 |
| temperature control. | 50--100 |
| working speed cycles/hr | 2400--3000 |
| size of worktable (w*d) mm | 950*160 |
| Air pressure | 6-8 bar |
| air compressor power (not included) | 1.5KW |
| Power supply | 220V 1PH 50HZ |
| dimension (w*d*h) mm | 1160*700*1070 |
| net weight | 130kg |
Corporate Introduction:
We, Shenzhen hongyuan stationery Co.,Ltd specialized in manufacturing high quality book binding materials, such as nylon-coated double wire, plastic spirals, calendar hanger, plastic combs ect. and related binding&punching machines.
Our compay has passed ISO9001 international quality system, all of our binding materials have passed strict SGS testing and met the standard of European environmental requirements.
We have full sets of advanced automatic production equipments and an experienced production management team.
Since 2003, we have developed a professional and integrated system for taking your order from sample to production, keeping you well informed at every stage of the process. Competitive prices, strict quality-control, professional service and prompt delivery are our main principle to work with you. Warmly welcome your contact and visit.
The building of our factory
Double loop wire producing line
Should we have chance to meet at Carton fair in Guangzhou & Paperworld in Shanghai?
Hello, my friend!
Hope you are satisfied with all our introduction, more details pls contact us, we are glad to be your best sources support.
