Paper Punch Machines Interchangeable punching dies

• keyword:paper punching machine
• Max.Punching paper Width:610mm
• Working speed:2400-3000t/h
• N.W.:368KGS
• Power supply:380V/3ph/50Hz
• Type:Punching Machine
• Different hole style:round, square, oval
• Packing size:1140*800*1220mm
• Gross weight:474kg
• Applicable Industries:Printing Shops
• After Warranty Service:Online support
• Local Service Location:None
• Showroom Location:None
• Condition:New
• Type:Punching Machine
• Computerized:No
• Warranty:1 Year
• After-sales Service Provided:Online support
• Key Selling Points:Easy to Operate
• Core Components:Motor
• PLC Brand:MITSUBISHI
• Place of Origin:CN;GUA
• Brand Name:HY
• Voltage:380V
• Dimension(L*W*H):1070*700*1050
• Weight:368KG

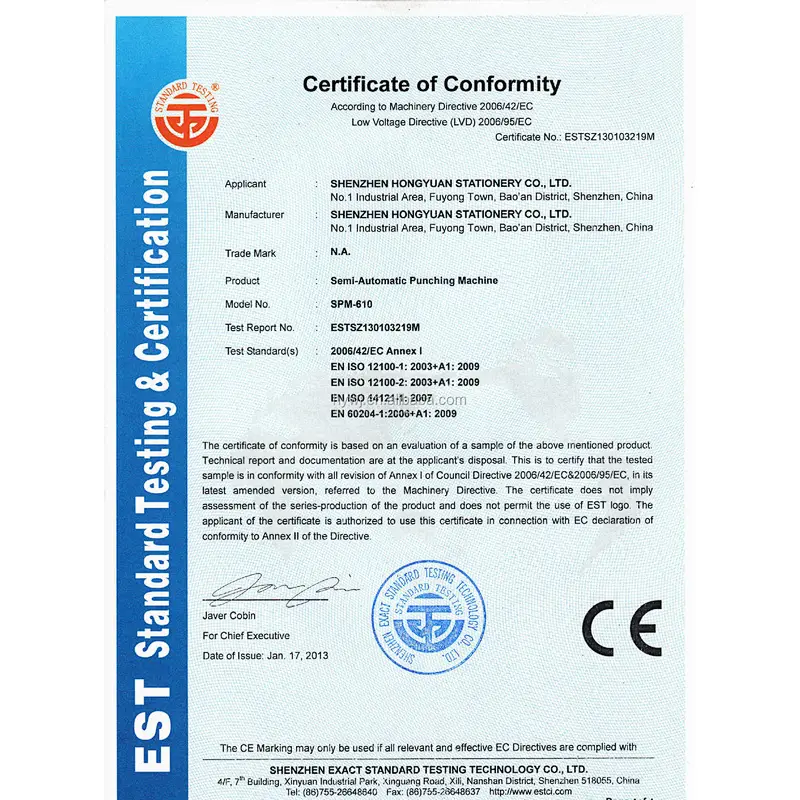

• Certification:CE
• Production Capacity:3000/hr
• Max. workable width:610mm
• Machinery Test Report:CE
• Video outgoing-inspection:yes
• Marketing Type:hot sale
• Warranty of core components:1 year

Paper punch machines,hole puncher machine

Advantages for paper punching machine:

.Working speed up to 2400~3000 books per hour

.Max. Paper thickness per time: 2 mm.

.Punching length can be 610mm(Max.)

.New slide-type pneumatic components extend the machine life and ensure the machine stability

Specifications for paper punching machine:

We can offer choice of different punching models to cater for your required punching applications. Also a wide range of high quality punching tools is available to ensure that every stadard punching requirement.

A)3:1 pitch, 4mm x 4mm Square Hole

B)2:1 pitch, 5mm x 4mm Square Hole

C)2:1 pitch, 4.2mm x 4.2mm Square Hole

D)2:1 pitch, 4.2mm x 4.2mm Square Hole with thumbnut for calendars

E) 3:1 pitch, 4mm x 4mm Square Hole with thumbnut for calendars

F)6mm pitch, 3mm diameter Round Hole

G)6.35mm pitch, 3mm diameter Round Hole

H)14.28mm(9/16”) pitch, 3mm x 8mm Rectangular Hole

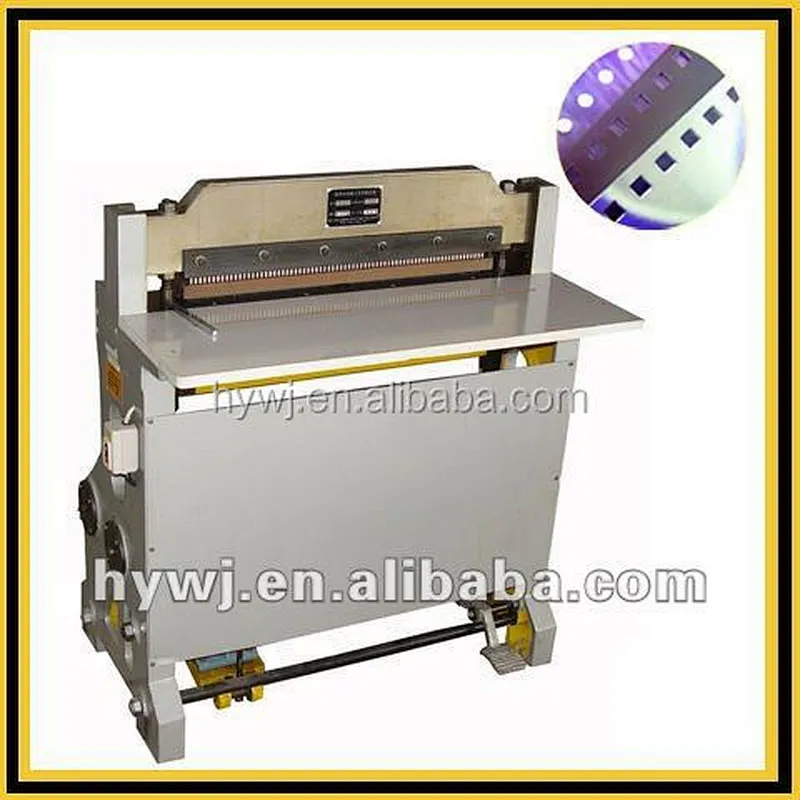

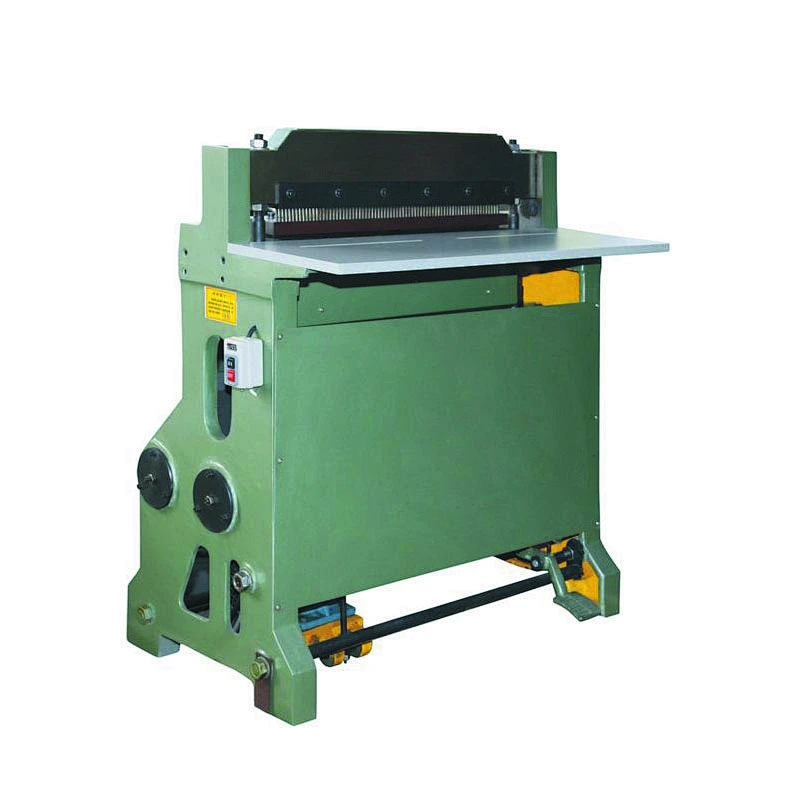

Pictures for paper punching machine:
