DWC-520A(NEW2) Other Metal & Metallurgy Machinery wire machine , binding machine , office supplies

Price:: US $ 5000.00-9000.00 / set
Minimum order quantity: 1 set
Supply Ability: 100.0 set / Month
Country of Origin: Shenzhen CN

Quantity:

Product Description

After-sales Service Provided:Engineers available to service machinery overseas
Double Loop Wire Specifications:Diameter:1/4"-7/8"
Max. Paper Width:520mm
Max. Binding Width:507mm
Min. Paper Length:75mm
Working Speed:1200-1700 cycles/hr
Size of Worktable(WXD):660X300 mm
Air Pressure bar:6-8
Dimensions of Pay-Off Unit (LXWXH):490X760X1230 mm
Machine Type:Spiral Machine
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Warranty of core components:1 Year
Core Components:Motor
Key Selling Points:Easy to Operate
After Warranty Service:Online support
Local Service Location:None
Applicable Industries:Printing Shops
Showroom Location:None
Place of Origin:CN;GUA
Brand Name:Hongyuan
Marketing Type:hot sale
Warranty:1 year

Book Binder Machine, Wire Binding Machine

1. Working speed up to 1200~1700 books per hour
2. Binding diameters can be 1/4"-7/8",pitch can be 3:1 or 2:1
3. Skip-bindings at one time are available, up to 5 skip binding per once
4. Touch screen and automatic error reminder
5. Automatic hanger binding device,automatic books convey device
6. New slide-type pneumatic components extend the machine life and ensure the machine stability

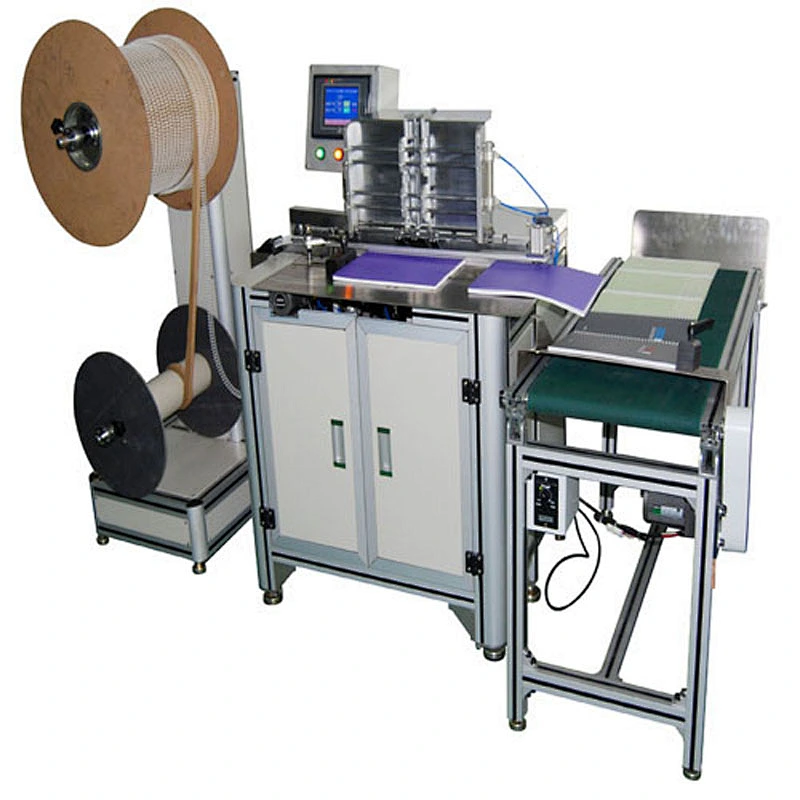

DWC-520A Semi-Automatic Doble Loop Wire Binding Machine

Specifications

Feeding Mode	Manual
Handing of Double Wire	Automatic Cutting,Inserting, Closing & Conveying
Double Loop Wire Specifications	Diameter:1/4"- 7/8"(Pitch:3:1, 2:1)
Max. Paper Width mm	520
Max. Binding Width mm	507
Min. Paper Length mm	75
Working Speed cycles/hr	1200~1700
Size of Worktable(WXD) mm	660X300
Power	220V/1ph/50Hz
Air Compressor (not included) kw	1.5
Air Pressure bar	6~8
Machine Dimensions (LXWXH)mm	1000X760X1230
Net Weight kg	271
Dimensions of Pay-Off Unit (LXWXH) mm	490X760X1230
Net Weight kg	54
