- max. paper width:520mm
- working speed:1200-1700 cycles/hr
- size of worktable:660x300mm
- power:220v/1ph/50Hz
- demensions:1000x760x1230mm
- dimensions of pay-off unit:490x760x1230mm
- Max. Binding Width mm:507
- Min. Paper Length mm:75
- Net Weight kg:54
- keyword:binding machine
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Condition:New
- Type:Other
- Automatic Grade:Semi-automatic
- Key Selling Points:Automatic
- Place of Origin:CN;GUA
- Marketing Type:hot sale
- Brand Name:Hongyuan
- Voltage:220V
- Dimension(L*W*H):1000X760X1230mm
- Weight:271KG
- Certification:CE
- Warranty:1 year

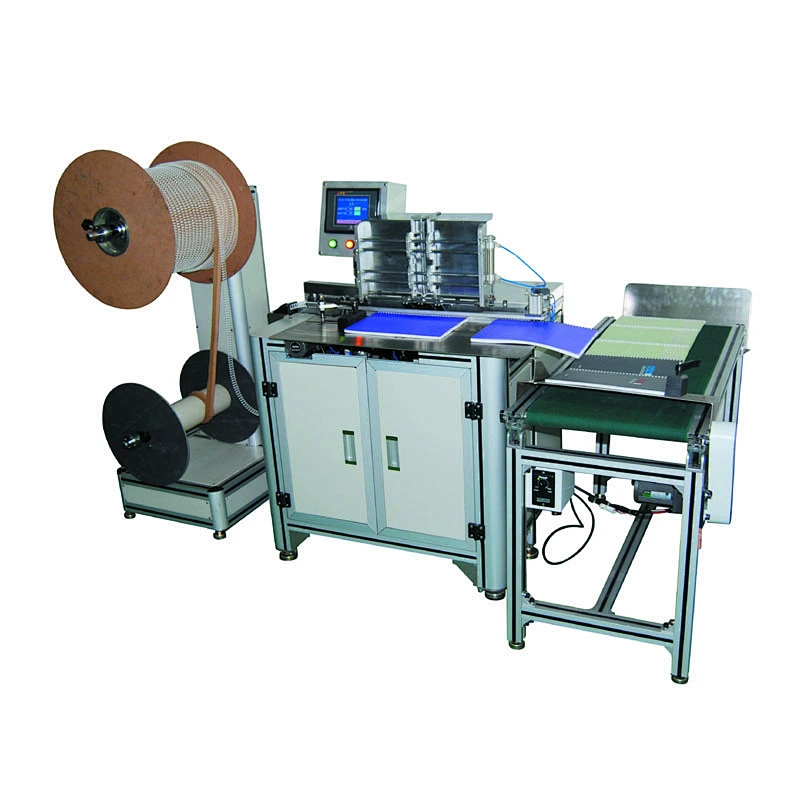

Hot Sale Book Binding Double Wire Machine
Advantages:
1. Working speed up to 1200-1700 books per hour
2. Binding diameters can be 1/4"to 7/8", pitch can be 3:1 or 2:1
3. Skip-bindings at one time are available, upto 5 skips binding each time
4. Touch scree and automatic error reminder
5. Automatic hanger binding device,automatic books convey device.
6. New slide-type pneumatic components extend the machine using life and ensure the machine stability.
Specification:
MODEL |
| DWC-520A |
Feeding Model |
| Manual |
Handing of Double Wire |
| Automatic cutting,insertion&closing |
Wire Specifications |
| Diameter1/4"-7/8" Pitch 4:1",3:1",2:1" |
Max.Paper Width (mm) |
| 520 |
Max.Binding Width (mm) |
| 507 |
Min.Paper length (mm) |
| 75 |
Working Speed (cycles/hy ) |
| 1000-1300 |
Power Supply |
| 220V/1ph/50Hz |
Air Compressor(not included) (kw) |
| 1.5 |
Air Pressure (bar) |
| 6-8 |
Machine Dimensions (mm) |
| 1030(L)x770(W)x1200(H) |
Outside Wooden Box Dimensions (mm) |
| 1480(L)x1050(W)x1570(H) |
Net Weight (kg) |
| 250 |
Gross Weight (kg) |
| 350 |
Dimensions of Pay-off Unit (mm) |
| 490(L)x760x1220 |
Neet Weight of Pay-off Unit |
| 65 |
PART ONE
PART TWO
PART THREE
PART FOUR
PART FIVE
PART SIX
PART SEVEN
The picture is our part of workshop :
Our factory specilizes in manufacturing high quality book binding materials, such as nylon coated double loop wire, plastic coil, nylon coated metal coil, nylon coated calendar hanger, plastic comb...etc and related book binding machines. Our company has passed ISO9001 international quality system; All of our binding materials passed strict SGS testing and binding machines with CE certificate. They meet the standards of Euro-American markets
We have full sets of advanced automatic production equipments and an experienced production management team. Since 2003, we have developed a professional and integrated system for taking your orders from sample to production, keeping you well-informed at evey stage of the process. Competitive prices, strict quality-control, professional service and prompt delivery are our main principle to work with you.
Warmly welcome your contact and visit!
