- hole punching machine:automatic paper punching machine
- max papersize:400*380mm
- min paper size:135*125mm
- max paper thickness:2mm
- working speed:140 times per minute
- paper thickness:from 60g to 400g
- different punching mould:round, square, oval
- net weight:700kg
- power supply:380V/3ph/50Hz
- Power(W):3KW
- CNC or Not:Normal
- Condition:New
- Machine Type:Punching Machine
- Power Source:electralical
- Key Selling Points:Automatic
- Applicable Industries:Printing Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Core Components:Motor
- Core Components:PLC
- Place of Origin:CN;GUA
- Nominal Force (kN):/
- Brand Name:HY
- Voltage:380V
- Dimension(L*W*H):2200*1000*1300mm
- Certification:CE
- Weight (T):0.7
- Warranty:1 year
- Marketing Type:hot sale
- Machinery Test Report:CE
- Video outgoing-inspection:yes
- Warranty of core components:1 year

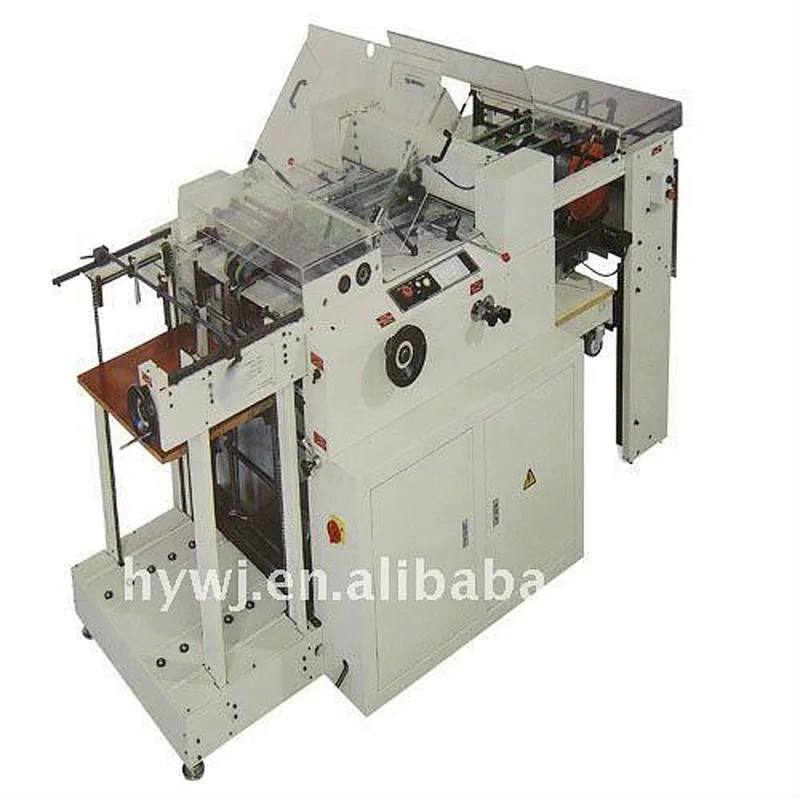

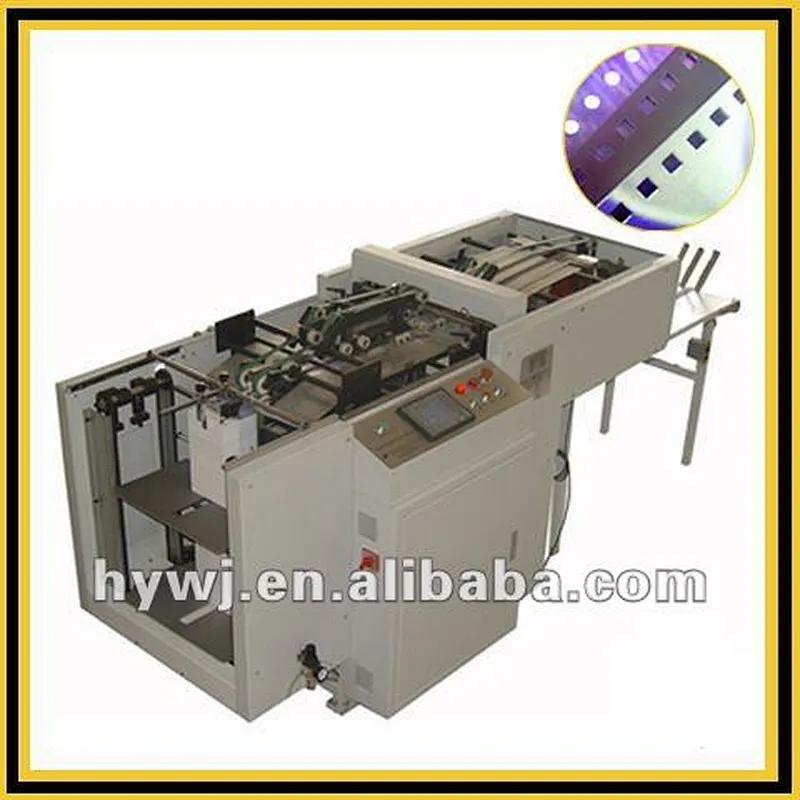

Automatic Paper Punchihg Machine For Punching The Hole For Calendar,
a. Max. Punching speed up to 8400 cycles/hour
b. Max.punching width up to 400mm(with the conveyor option)
c. Two discharge options(a high pile reception unit or a converyor) are available
d. Handle different paper thickness from 60gsm to 400 gsm.
Max. Paper Size , with high pile reception unit 400*380 mm
Min.Paper size mm, with high pile reception unit 135*125 mm
Max.punching width,with high pile reception unit 400mm
Max.paper thickness, 2mm
Paper specification, 60-400g/m2
Max.pile height, 370mm
Max.cycle speed, 8400cycles/hr
Normal working speed, 7200 cycles/hr
Min working speed, 1800 cycles/hr
Power consumption, 3KW
Dimensions (W*D*H), 2200*1000*1300mm
Machine net weight, 1400kg
Air compressor, 0.37kw
Air Pressure, 4-6 bar
With compact design for heavey duty use and easy to use. We can offer choice of different punching models to cater for your required punching applications. Also a wide range of high quality punching tools is available to ensure that every stadard punching requirement.
