- After-sales Service Provided:Engineers available to service machinery overseas
- index tab machine:index tab laminating machine
- Type:Laminating Machine
- Power:1.5kw
- Driven Type:Electric
- Packaging Material:Wood
- Certification:CE
- Automatic Grade:Automatic
- Application:office stationery
- Packaging Type:in wooden
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Product Type:Paper Plate Machine
- Processing Type:Laminating Machine
- Certification:ce
- Warranty:1 year
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Core Components:Motor
- Place of Origin:CN;GUA
- Applicable Industries:Printing Shops
- Applicable Industries:stationery
- Brand Name:HongYuan
- Voltage:220V
- Dimension(L*W*H):1160*700*1070MM
- Weight:130KG
- Production Capacity:/
- Marketing Type:hot sale
- Warranty of core components:1 year

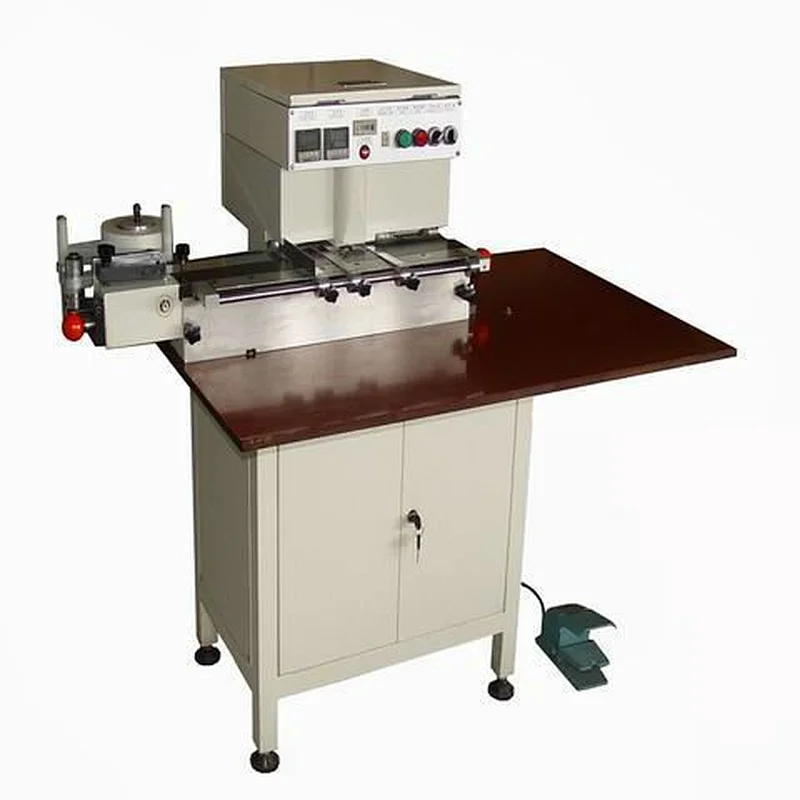

Wholesale custom personalized TLM-330 Paper Product Making Machinery Index Tab Laminating Machine
Advantages:
1. Easy to operate. Working speed up to 2,400 pcs per hour.
2. No need to change moulds for different width of tabs.
3. Retrofitted for the lamination of insert tabs are available
4. Max. paper width up to 400mm
| TLM330 Specifications | |
| max.paper size (l*w) mm | 330*300 |
| min paper size (l*w) mm | 110*85 |
| Tabbing width mm | 25--41 |
| Tabbing length mm | 10--110 |
| lamination time (sec.) | 0.5-1.4 |
| temperature control. | 50--100 |
| working speed cycles/hr | 2400--3000 |
| size of worktable (w*d) mm | 950*160 |
| Air pressure | 6-8 bar |
| air compressor power (not included) | 1.5KW |
| Power supply | 220V 1PH 50HZ |
| dimension (w*d*h) mm | 1160*700*1070 |
| net weight | 130kg |
